The horizontal machining center has a rapid (m / min) 75, and a push on the axes of 900 kg. The spindle has a speed of (vel rpm) 16000 and a power of (kW) 40. The hole type of cone is HSK63
with a diameter front bearing (mm) 70.
The tools have a tool change wheel, a storage capacity of 80, a (mm Maximum tool diameter) nd and weighing max tool (kg) 8.
The Time Exchange truc-truc PALLET ( '') 4,7mentre the pallet change time ( '') 8, the pallet is dimetro (mm) 400x500 while the rotation diameter of (mm) 700.
The maximum weight of the pallet is to (kg) 300 while the positions 360000. The table is of v rot (rpm) 100. The work center has a chip conveyor and a scraping lxwxh of 4,7x1,8x2,5.
I confirm the following, high-pressure 65 bar and a presence control tool via laser.

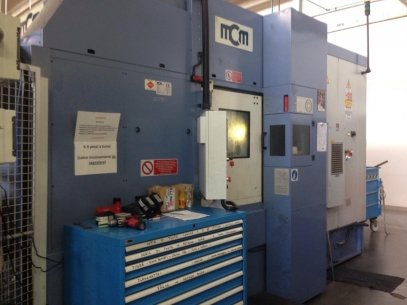

Brand And Model MCM 600 CONCEPT 4 ASSI
Year of construction 2009
HSK 63 spindle nose
Number Tours 16000
X-axis stroke 610
Y-axis stroke 650
Z-axis stroke 700
Power spindle power (kW) 40
Tool number 80
Pallet Number 2
Pallet size (Table) 400x500
Axes Controlled number 4
Pallet Rotation Control (Table) In Continuous? CONTINUOUS
