x-travel: 1000 mm
y-travel: 508 mm
z-travel: 460 mm

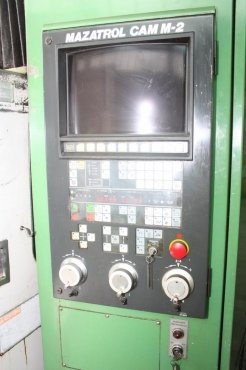

control: Mazatrol CAM M 2
table surface area l x w : 1250 x 550 mm
taper: SK 40
toolchanger positions: 30
power capacity - spindle: 7 kW
turning speed range: 28 - 4000 rpm
weight approx.: 5600 kg
dimension of the machine l/w/h: 4,4 x 3 x 3,1 m

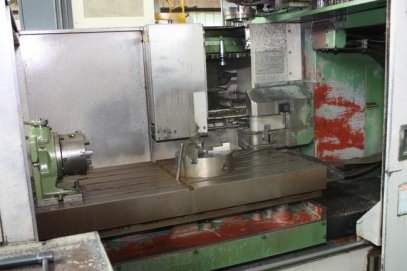

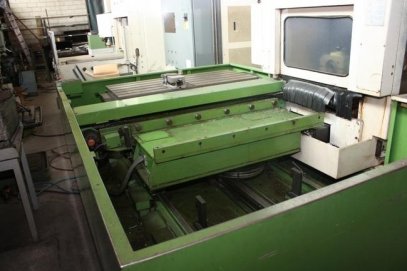

Description: two palets each 1250 x 550 mm, coolant attachment. The collection of the machine must be on a flatbed-truck.
