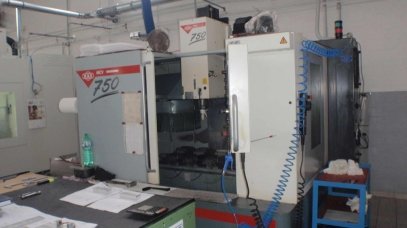

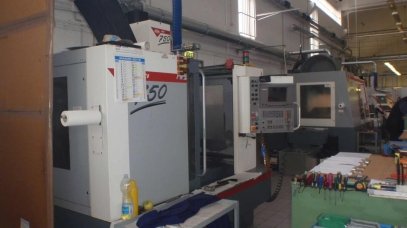

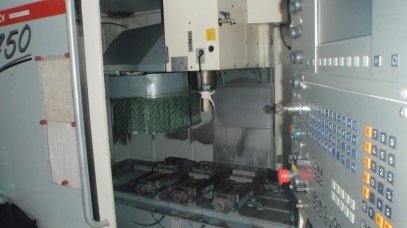

The vertical machining center has a tool magazine 20 positions, the spindle motor of 7.5 / 11.5 kw, 8000 rpm, drip chips, rapid 16000 mm / min.
Specifications:
Technical specifications

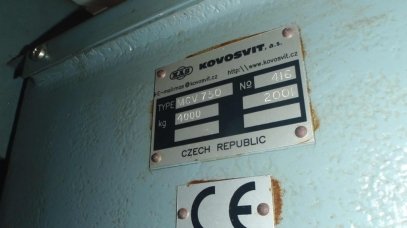

Brand And Model MAS MCV 750
Year of construction 2001
Spindle nose ISO40 DIN69871 -
number Giri 8000
X-axis stroke 750
Y axis stroke 500
Z-axis stroke 500
Spindle power KW 7.5 / 11.5

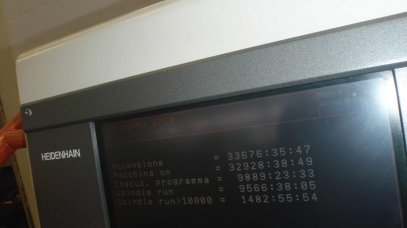

CNC model HEIDENHAIN TNC426
number Tools 20

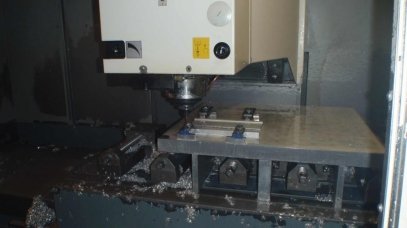

Pallet size (Table) 1000x500
Number Axes Controlled 3
Other… QUICK 16000 MM / MIN.
