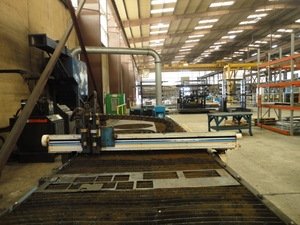

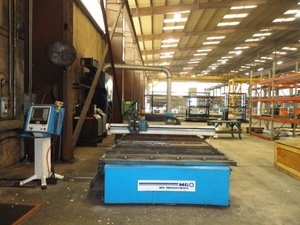

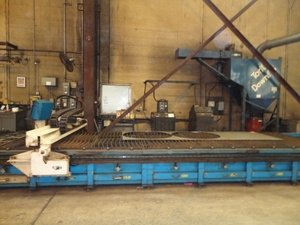

PRE OWNED 1997 MESSER-MG PROMASTER GANTRY STYLE HIGH PERFORMANCE PLASMA SYSTEM
SERIAL NUMBER: PM-97-3449.
GENERAL SPECIFICATIONS
MAXIMUM CUTTING WIDTH 6’
MAXIMUM CUTTING LENGTH 24’
EQUIPPED WITH

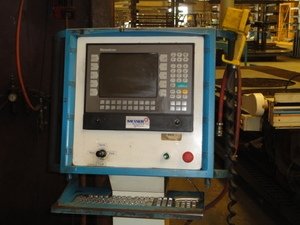

NEMATRON/MG EVOLUTION 1000 PC BASED CNC CONTROLS (LEFT HAND MOUNTED)
- 9” HIGH RESOLUTION COLOR GRAPHIC DISPLAY
- STANDARD SHAPE LIBRARY
- INFINITELY VARIABLE SPEED DRIVES
HYPERTHERM HD-3070, 100 AMP HYDEFINITION PLASMA POWER SOURCE
- STATION OUTLET EQUIPMENT
AUTO GAS CONSOLE AND TIMER COUNTER
- PROGRAMMABLE GAS MIX INTERFACE
- INTERLOGIC RHAPSODY 401 HIGH SPEED TORCH LIFTER
- BREAKAWAY TORCH HOLDERS
- COLLISION DETECTION
- CUTTING RANGE
½” MILD STEEL, 3/8” STAINLESS
- QUICK DISCONNECT TORCH
- INTERLOGIC RSVP 101 RAPIR SERVO LIFTER
HYPERTHERM HT2000 200 AMP PLASMA POWER SOURCE
- STATION OUTLET EQUIPMENT
- MANUAL GAS MIX INTERFACE
- INTERLOGIC RHAPSODY 401 HIGH SPEED TORCH LIFTER
- BREAKAWAY TORCH HOLDERS
- COLLISION DETECTION
- CUTTING RANGE
1” MILD STEEL
- INTERLOGIC RSVP 301 RAPIR SERVO LIFTER
PNEUMATIC AIR SCRIBE PLATE MARKER
PRELOADED BALLSCREW DRIVEN Y-AXIS
RACK AND PINION DRIVES IN X AXIS’
HYPERTHERM HIGH VOLTAGE DRIVE AMPLIFIERS
HIGH SPEED 1000 INCH/ MINUTE DRIVES
UNITIZED MACHINE BASE
ZONED DOWNDRAFT TABLE
FIBER OPTIC MODEMS
PENDANT MOUNTED DIGITAL AMP COMTROL FOR EACH PLASMA
CMC/BURNY MODEL 12630-141AF HIGH VOLTAGE, HIGH TORQUE DRIVES
DUAL END DRIVE
SPARK TRAP FOR DUST COLLECTOR

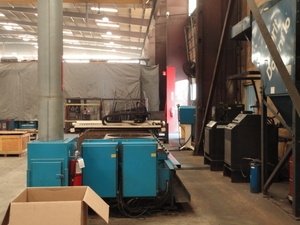

DONALDSON TORIT DUST COLLECTOR
POWER TRACK IN LONGITUDINAL AXIS, TYPE 22R HOSE AND CABLE CARRIER SYSTEM
