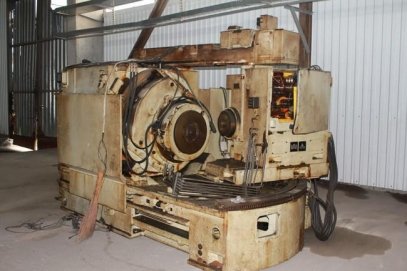

Wheel diameter - max. 540 mm wheel width 78 mm module - max. Module 16 - min. Teeth 1 min / max 6-100 cone length - min / max. 270 mm cone angle - min. / max. 90 Spindle speed range: 23-224 U / min of the work spindle axis offset + / - 80 mm diameter cutter head 6 - 12 "Wälzvorschub 0.8 to 5.6 / sec down feed 0.5 - 6 mm / min power capacity 16 kW Machine weight about 12 tons
