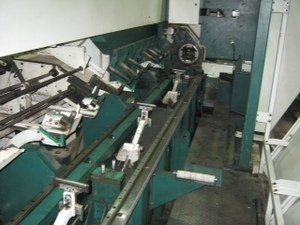

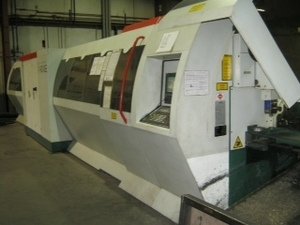

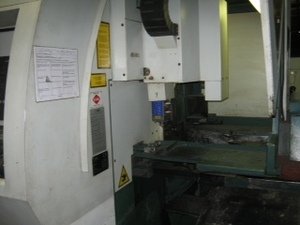

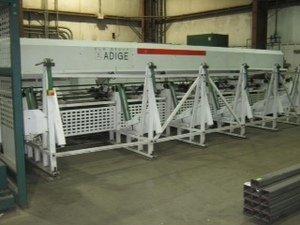

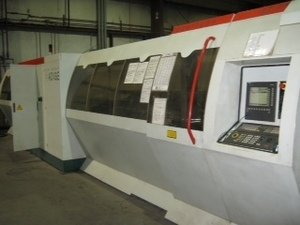

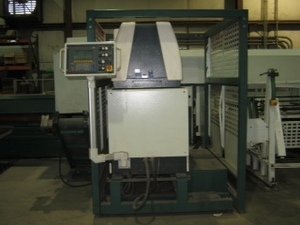

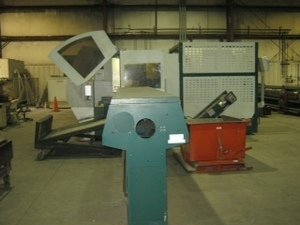

Machine is in plant, under power, running.........resonator was replaced in June of 2009.........6" max. tube capacity.........under 20,000 hours on the machine........machine built new in June 2005, installed in early 2006
Specifications:
Gear teeth type: external and internal straight teeth
Min diameter of wheels: 160 mm
Max diameter of wheels: 1250 mm
Max module: 12 mm
Distance from cutter axis to the table axis: 60-630 mm
Max toothing width: 160 mm
Number of teeth: 12-200
Distance from slider’s face to the surface: 150-550 mm
Dimension: 3100x1800x3500 mm
Weight: 10450 kg
