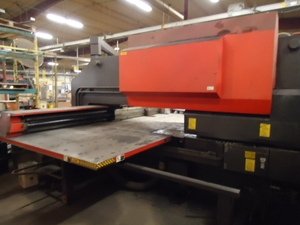

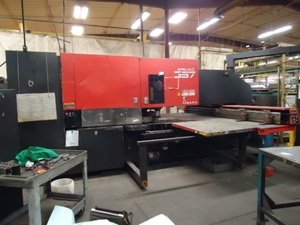

(1) PRE OWNED 1992 AMADA APELIO / PEGA 357 CNC TURRET PUNCH
SERIAL NUMBER
GENERAL SPECIFICATIONS
MAXIMUM TRAVERSE 50” X 72” MAXIMUM SHEET SIZE (WITH REPOSITIONING) 50” X 144”
MAXIMUM PUNCHING CAPACITY (MILD STEEL) ¼”
MAXIMUM HITS PER MINUTE 350
MAXIMUM SHEET WEIGHT 220 LBS
MAXIMUM POSITIONING SPEED 2795 INCHES PER MINUTE
TOTAL TOOL STATIONS IN TURRET 58
TURRET CONFIGURATION- H-TYPE THICK TURRET
36 @ 1/2" DIA 12 @ 1-1/4" DIA. 4 @ 2" DIA. 2 @ 3-1/2" DIA. 2 @ 4-1/2' DIA. 2 @ AUTO ÍNDEX (1-1/4" DIA.)
AUTO INDEX CONFIGURATION
ANGULAR INCREMENT 0.01 DEGREE
MAXIMUM NIBBLING ANGLE 8 DEGREE
B—DIRECTIONAL ROTATION
AC SERVO DRIVE
60 RPM
TURRET SPEED 30 RPM
AIR REQUIREMENT 80 PSI
MAIN MOTOR HORSEPOWER 5.5 KW
EQUIPPED WITH

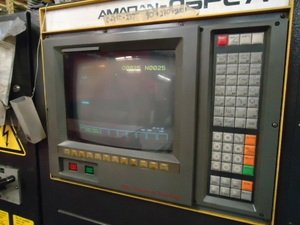

GE FANUC 05PLA CONTROL
AUTO REPOSITIONING
HYDRAULIC CLUTCH & BRAKE
BALL TRANSFER TABLE
*LASER NOT FUNCTIONAL / MACHINES AS A PUNCH
APPROXIMATE OVERALL DIMENSIONS 9’ W X 7’H X 16’ L
APPROXIMATE OVERALL WEIGHT 30,400 LBS
