working hours machine: ~ h (stand 02/14)
working hours laser: ~ 22.000 h (stand 02/14)
working range X x Y x Z: 3048 x 1524 x mm
laser

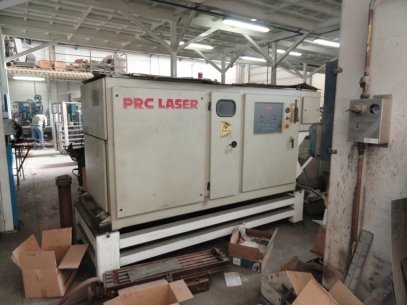

laser type: DC- tubes generated
laser capacity CW: 4000 Watt – Upgrade on 4000 Watt in 2000
laser range capacity: 100 - 4000 Watt
machine

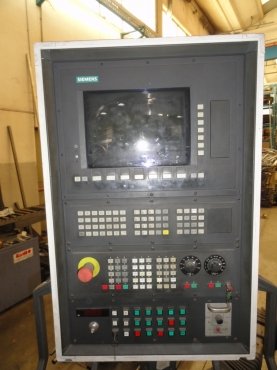

CNC-control: SIEMENS 840 D
cooling unit: Hyfra Pedia
dust extraction: Donaldson Torrit 3 DFP 9
electrian capacity total: 60 KW
space needs ca.: 10.800 x 7.300 x 2.920 mm
weight total ca.: 16.000 KG
cutable materials and thicknesses
mild steel ( EN 10027-1 S 235JR+AR or rec. Raex-Qualität) 20 mm
inox ( EN 10027-2 1.4301 (X5CrNi18-10 ) 12 mm
aluminum (z.B. 3.3535 AlMg3 ) 8 mm

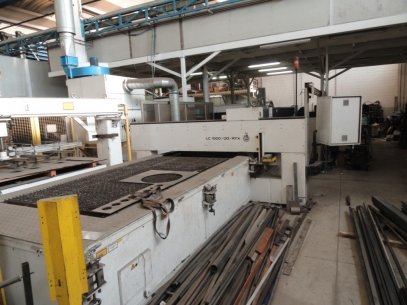

machine description
standard options:
• cutting machine with operator safety advice by cutting, loading and unloading

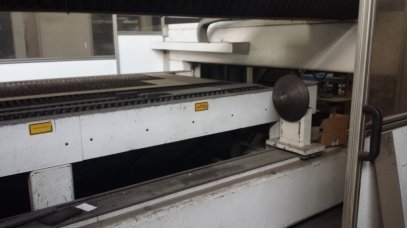

• automaticly table changer
• partical dust extraction system
• scrap envoyer cutting table
options:
• loading system

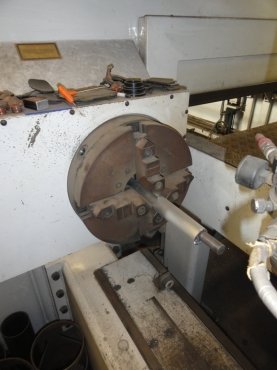

• rotary axics
revision and conditions:
• service through the manufactor/company
• machine stands in production
• new inverter for resonator (2013)
