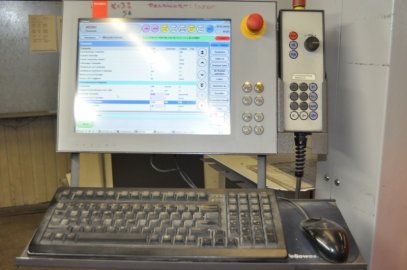

CNC-control: CNC Bystronic Byvision
cooling unit: E. Furrer WKL 250
dust extraction: Torrit DF+4-SPRK
electrian capacity total: 40 KW
space needs ca.: 12.900 x 6.100 x 2.070 mm
weight total ca.: 13.500 KG
cutable materials and thicknesses
mild steel ( EN 10027-1 S 235JR+AR or rec. Raex-Qualität) 15 mm
inox ( EN 10027-2 1.4301 (X5CrNi18-10 ) 6 mm
aluminum (z.B. 3.3535 AlMg3 ) 5 mm
machine description
standard options:
• cutting machine with operator safety advice by cutting, loading and unloading

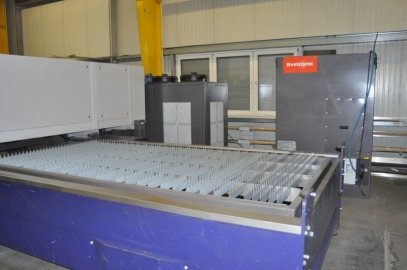

• automaticly table changer
• 2 cutting heads with 5“ + 7,5“ lenses
• lens break sensor
• cut control
• Bypos-W
• Cross-jet
• partical dust extraction system
options:
• dust extraction
revision and conditions:
• service through the manufactor/company
• machine is in production
