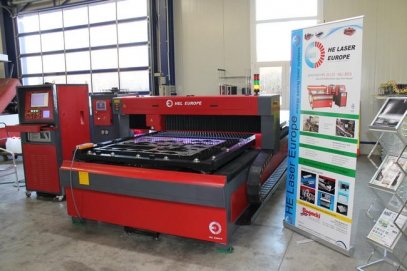

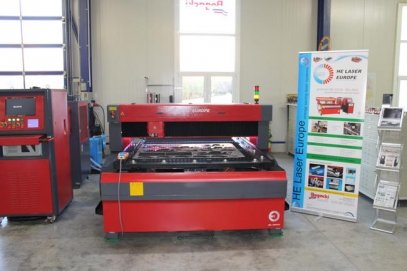

HEL-YAG Typ 500 Model 2513 engraving option included

cutrange aluminium up to 6 mm
cutrange stainlessteel up to 6 mm
cutrange mild steel up to 6 mm
cutrange copper up to 2 mm

Kein Schneidgas notwendig - nur Druckluft!

Autofocus head with integrated automatic height control

Power: up to 10 kW (Laser)
cutting area(lxw): 1250 x 2500 mm (optional (3000 x 1500 mm)
max. cuttingspeed: 10.000 mm/min
ccoolantsystem: water cooling
Pulsfrequency: 0 ~ 300 Hz
min. cut gap: ≤ 0.12 mm
Lasermedia: NdYAG
Laser – Wellenlaenge: 1064 nm

continously working time: 24 Stunden
machine weight : ca. 2200 kg
size ( l x w x h ): ca. 3250 x 1950 x 1400 mm

-
