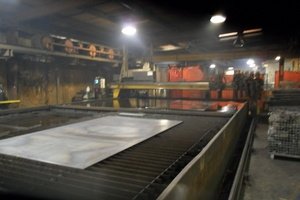

PRE OWNED 1998 ESAB AVENGER PLUS HIGH PERFORMANCE PLASMA SYSTEM
GENERAL SPECIFICATIONS
MAXIMUM CUTTING WIDTH 19’
MAXIMUM CUTTING LENGTH 32”
CENTER TO CENTER MACHINE RAILS
CONTOURING SPEED 2 TO 300 IPM
TRAVERSE SPEED 2 TO 700 IPM
EQUIPPED WITH
VISION 2000 CNC CONTROLS (LEFT HAND MOUNTED)
- 9” COLOR GRAPHIC DISPLAY
- STANDARD SHAPE LIBRARY
- INFINITELY VARIABLE SPEED DRIVE CONTROLLER
- KERF COMPENSATION
- AUTO CURVE ACCELERATION / DECELERATION
THERMAL DYNAMICS MERLIN 6000 600 AMP PLASMA POWER SOURCE
- 50 – 600 AMPS
- BREAKAWAY TORCH HOLDERS
- COLLISION DETECTION
- QUICK DISCONNECT TORCH
6 OXY FUEL STATIONS
- MOTORIZED TORCH STATIONS, 9.5” TRAVEL
AC BRUSHLESS SERVO MOTORS
GANTRY RUNNING ON HEAVY DUTY CRANE RAIL
PRECISION DUAL RACK AND PINION DRIVES IN X AXIS’ WITH PLANETARY GEARBOXES
- RAIL & WHEEL SCRAPERS
SINGLE RACK AND PINION DRIVE ON Y AXIS WITH BAND FOR ADDITIONAL HEADS
19’ X 32’ BALLASTED WATER TABLE
DUAL LINEAR BEARINGS AND WAYS
POWER TRACK IN LONGITUDINAL AXIS, HOSE AND CABLE CARRIER SYSTEM
