Koike Aronson Plasma Burning Machine, 43' Cut Length, 9' 8" Cut Width, 60 RPM, 236 IPM, Fanuc 15MB, Kaliburn Proline 2260 (1588)

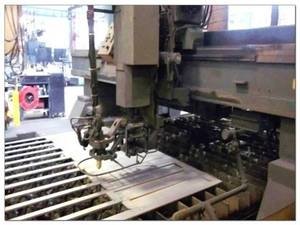

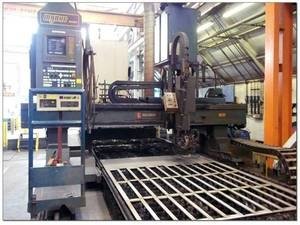

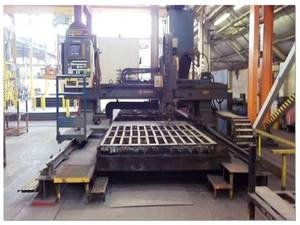

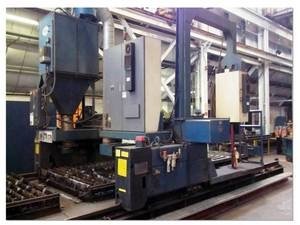

#1588 KOIKE Plasma Burning Machine with 360 Deg. Beel Torch Head

Sn:
Model: MYNUC 4000D
Mfg: Rebuilt 1996

SPECIFICATIONS:
Effective Cut Length: 43’
Effective Cut Width: 9’8”
Steel Production Cut Thickness: 1-1/4”
Maximum Cut Thickness: 2-1/2”
Transverse Drive: Rack & Pinion
Longitudinal Drive: Two Motor Synchronized Rack & Pinion
3E Plasma Bevel Torch Rotation: 360 Degrees
Rotation Speed: 60 RPM
Torch Positioning: +/- 47 Degrees
Bevel Angle Positive Capability: 45 Degrees
Bevel Angle Negative Capability: 40 Degrees
Raise and Lower Speed: 236 IPM

EQUIPPED WITH:
Kaliburn Proline 2260, 275 amp Hihg Current Density Plasma Cutting System
Fanuc 15 MB CNC Control
Down Draft Table
Dust Collector


Machine Condition: Excellent
Machine Location:
