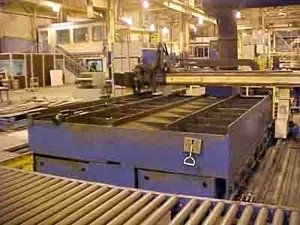

PRE OWNED MESSER-MG MPMM MULTIPROCESS GANTRY STYLE HIGH PERFORMANCE PLASMA SYSTEM
NEW 1997
GENERAL SPECIFICATIONS
MAXIMUM CUTTING WIDTH 8’
MAXIMUM CUTTING LENGTH 12’
CENTER TO CENTER MACHINE RAILS ”
EQUIPPED WITH
BURNY 5E CNC CONTROLS (LEFT HAND MOUNTED)
- 9” HIGH RESOLUTION COLOR GRAPHIC DISPLAY
- 3 ½” FLOPPY DRIVE
- STANDARD SHAPE LIBRARY
- INFINATELY VARIABLE SPEED DRIVES
HYPERTHERM HD3070 HYDEFINITION 100 AMP PLASMA POWER SOURCE
- TORCH INTERFACE
- INTERLOGIC RSVP-401 HD TORCH LIFTER
- CUTTING RANGE
0.048” TO 2” WITH OXYGEN
- QUICKSTOP TORCH COLLISION PROTECTION
PNEUMATIC DRILL
- MAX CAP, ½” DIAMETER HOLE ON 1” PLATE
PNEUMATIC AIR SCRIBE
- MARKS AND SCRIBES LINES ON MATERIAL
CMC/BURNY MODEL 12630-141AF HIGH VOLTAGE, HIGH TORQUE DRIVES
ZEPHYR ZONED DOWNDRAFT TABLE WITH CENTRAL DUCT
HYPERTHERM HIGH VOLTAGE DRIVE AMPLIFIERS
DUAL END DRIVE
HEAVY DUTY 115LB PER FOOT CRANE RAIL
RACK AND PINION DRIVES IN BOTH AXIS’
GAS REGULATORS
MANY SPARE PARTS
POWER TRACK IN LONGITUDINAL AXIS, TYPE 22R HOSE AND CABLE CARRIER SYSTEM
POSITIONED ON FLOOR ON LEFT SIDE OF MACHINE
