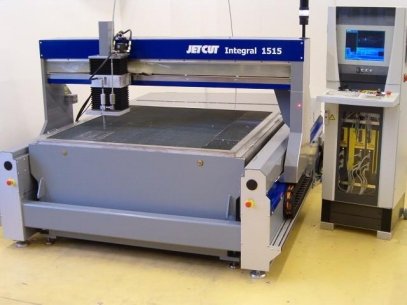

The compact water jet cutting system in portal construction with integrated high-pressure pump. Suitable for cutting parts and small production runs of any materials. The machine has about 450 hours Portal construction welded structure as a stable base precision guided X-axis drive: Servo motor with ball screw Y-axis Drive: servo motor with ball screw Z-axis drive: Servo motor with spindle design the covers of the guideways and drives with curved plates (no bellows), protect drives and guides from dirt, abrasive sand and splashing Integrated high-pressure pump 1.2. Table mass, technical data Working range (x-, y-axis) 1 500 x 1 500 mm Overall dimensions: 2000 x 4000 mm height (z-axis) 200 mm, speed: 0.01 - 20 m / min Electrical connection (without the high pressure pump) 3 x 400 V / 50 Hz Power consumption (without high-pressure pump) is about 10 kW Repeatability: 0.10 mm Number of cutting heads: 2 Weight with empty tank: about 2 500 kg with a full tank: about 6000 kg 1.3. Z-axis, the z-axis is delivered by a motor. 1.4. Control standard CNC controller (Engelhardt) cabinet on castors panel monitor with keyboard Serial port / network connection for data transfer from an external CAD / CAM 1.5. Water tank / water trough cutting base of 3 mm stainless steel, depth 600 m [...Technical data truncated]
