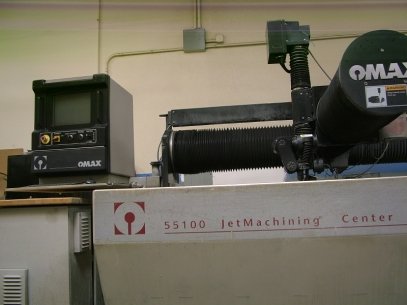

5-Axis W/ Tilt-A-Jet
Included in this price are the following Equipment/Accessories:
All Factory Repair/Operation/Training Manuals
Step Up Transformer

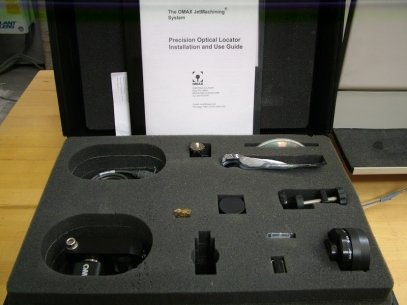

Precision Optical Locator
Bulk Abrasive Delivery System

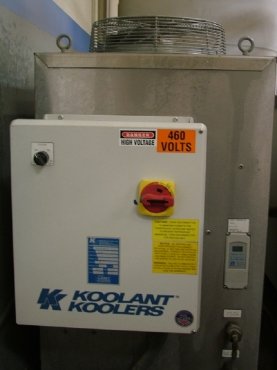

Water Chiller w/Reverse Osmosis System
Abrasive settling Weir

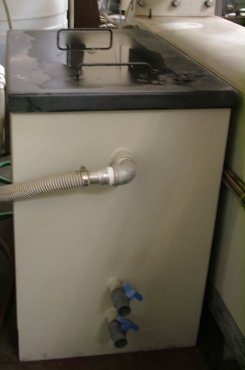

300 gallon, Clean water Storage Tank w/transfer pump
800 gallon Settling Tank w/transfer pump
Shop Tools for work clamping and locating
Custom Fixtures to hold small parts/material
Misc. Shop and Maintenance Tool
Pump/High Pressure Plumbing rebuild kits
Specifications:
Specifications:
Cutting Head Travel - X, Y travels 100" x 55"

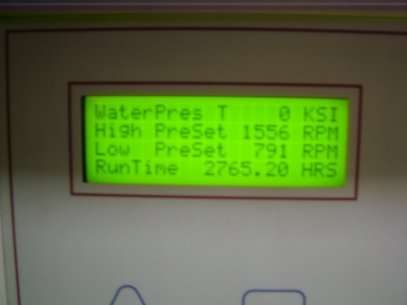

OMAX Direct Drive Pump Horse Power 30 HP Variable Speed
MAX Dimensions inside the tank 126" x 65"
Standard Voltage 380-480 Volts 3 Phase
Optional Voltage 208 - 240 Volts 3 Phase
Maximum Operating Pressure 50,000 PSI
Pressure safety blow down valve
Machine Weight (empty) 8,000 lbs
Operating Weight with water 22,000 lbs
Maximum Supported Load (lbs / square ft) 250 lbs / sq. ft.

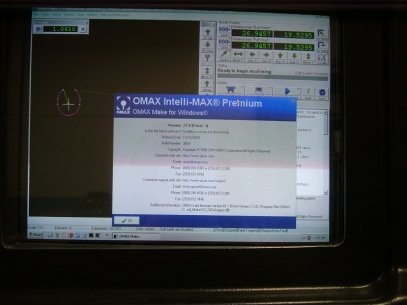

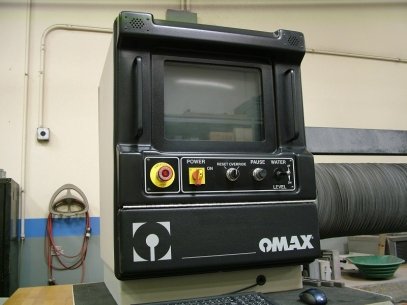

OMAX motion control software incorporating Windows XP software
