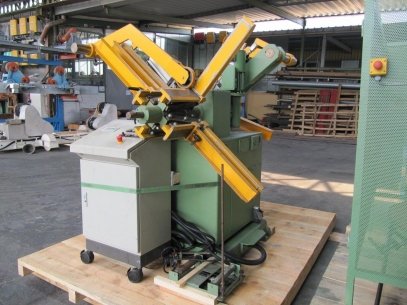

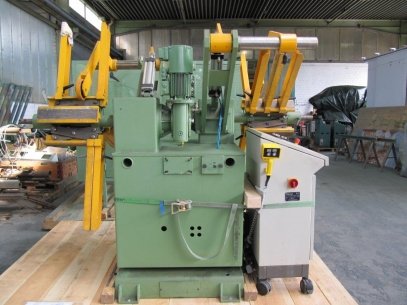

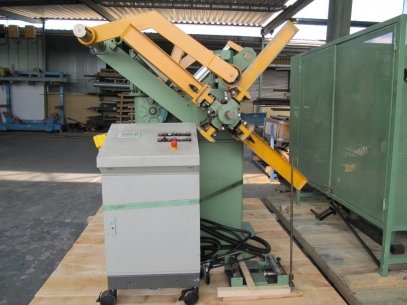

One used double-ended decoiler ‘FIUME’ model MDD 1600, year of mfg 2004.
Double-ended decoiler, rotating/swivelling type.
Coil weight: max 1600 + 1600 kg
Strip width: max 300 mm
Strip thickness: max 2.0 mm
External diameter coil max 1500 mm
Internal diameter coil min/max 370 - 630 mm
Speed: 16 RPM max
Decoiling speed: max 18 m/min.
Loop control via ultrasound sensor.
Swivelling device 180° manually with locking.
2 pressure arms, pneumatic, with free-running roller.
Machine weight 2450 kgs approx.
Overall dimensions 2400 x 1600 x 2200 mm high.
2 three-phase motors 1.1. kW with Lenze frequency inverter.
8200 E82EV152-2B.

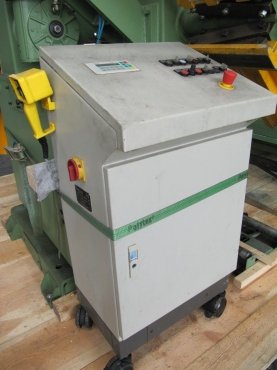

PLC system: Siemens S7-200 CPU224
Power supply 3x400 V AC, 25 A
Control voltage: 24 V DC
Nominal power: 16 A
Total power requirement: 2.2 kW.
Specifications:
Suitable for use with high speed presses such as Bruderer or Haulick
