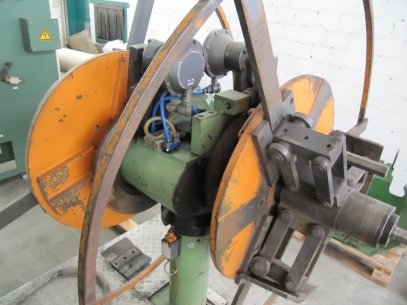

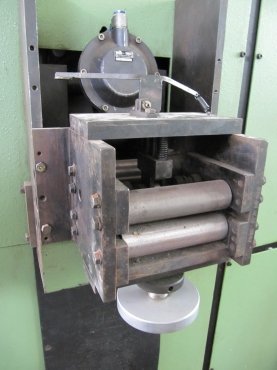

Used Kohler motorized combination double-ended decoiler and precision strip straightener. Model 18-120/19-1000-2M
Levelling width: 120 mm
Roll diameter: 18 mm
Number of rolls: 19
Area of cross section: 250 mm²
Levelling direction: left-to-right
Strip input: on the left
Levelling speed: 0-60 mm/min
Roll adjustment: motor
Levelling machine drive: 4 kW; 3200 rpm
Oil pump motor: 0,06 kW; 1300 rpm
Roll adjustment motor: 0,1/0,4 kW; 72/297 rpm
Table length: 1450 mm
Table width: 381 mm
Strip radius: 350 mm
Max. strip thickness: 1 mm
Height of feed into press:
-Max.: 1355 mm
-Min.: 1265 mm
