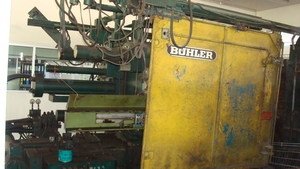

Buhler 400 Ton H-400-B, in excellent condition

Locking force 400 tons /4600KN
Injection force 47 tons
Plunger stroke 480 mm
Shot position0, -250 mm
Ejector force 27 tons
Ejector stroke 145 mm
Min./max. die height 250/780 mm
Platen dimensions - h x v 990 x 990 mm
Distance between tie-bars - h x v 640 x 640 mm
Tie-bar-diameter 120 mm
Die opening stroke 640 mm
Driving capacity 30 KW
Dimensions (length x width X Height) approx. 7500 x 2400 mm x 2300 mm
Weight approx. 16 ton

2.5 x 7.5 x 2.3 mm

16000 KG
