Stock-No. 1106-BO228

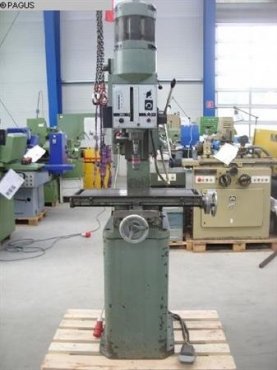

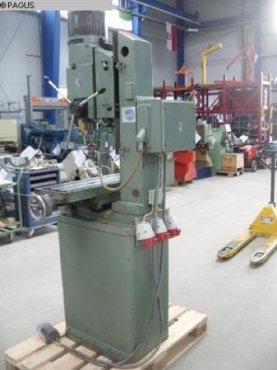

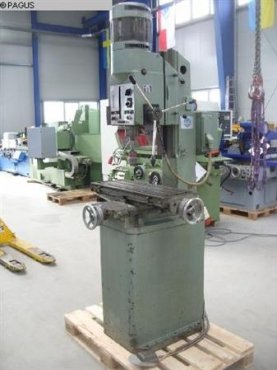

Type of machine Drilling and Milling M/C
Make CORDIA
Type BF-30V
Type of control konventionell
Storage location Pagus NL. Jena Germany
Specifications:
bore capacity in steel (diameter) mm
throat 300 mm
bore stroke mm
drilling depth 160 mm
spindle MK 2
distance Bohrf.-Tisch 300 mm
twist drill dia. (con. shaft) 30 mm
table surface area 690 x 200 mm
T-slots 3
width of T-slots 14 / 25 mm
spindle turning speed range 720 - 1450 U/min
total power requirement 1,4 kW
weight of the machine ca. 800 kg
dimensions of the machine ca. 950 x 1050 x 2200 mm
