Stock-No. 1106-BO238

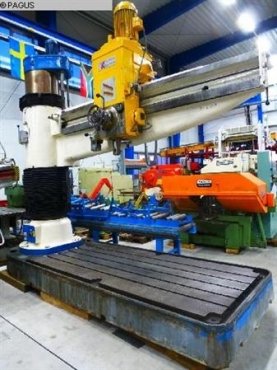

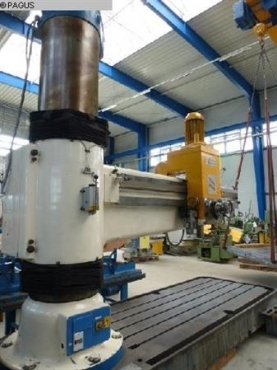

Type of machine Radial Drilling Machine
Make CSEPEL
Type RFH100-3000
Year of manufacture 1975 GR 2005
Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Hungary
Specifications:
Technical details
bore capacity in steel (diameter) 100 mm
arm length 3000 mm
workpiece height max. mm
workpiece weight max 15000 kg
surface area 2495 x 1550 mm
spindle taper MT 6
radius 3500 mm
spindle stroke 400 mm
number of spindle speeds 21
feeds 0,0375 - 2,0 mm/U
spindle turning speed range 18 - 1800 UpM
bore capacity in cast iron 120 mm
feeds: 18
morse taper M6
base plate 3160 x 1550 mm
T-slots 5
T - slots - width 28 / 48 mm
vertical adjustment Ausleger 1260 mm
total power requirement 15 kW
weight of the machine ca. 12100 kg
dimensions of the machine ca. 3725 x 1550 x 4130 mm
