Stock-No. 1106-BO138

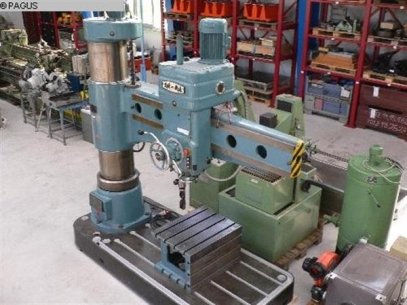

Type of machine Radial Drilling Machine
Make EXPODIUM
Type Z-30063 x 20
Year of manufacture ca. 1990
Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Taiwan
Specifications:
Technical details
bore capacity in steel (diameter) 63 mm
arm length 2000 mm
workpiece height max. 135 mm
spindle stroke 400 mm
reus 16 Stufen
table-size 630 x 800 mm
tool taper MK 5
speeds 20 - 1600 U/min
spindle feeds: 0,04- 32 mm/U
work table: 800 x 630 x 550 mm
total power requirement 5,5 kW
weight of the machine ca. 6200 kg
dimensions of the machine ca. 3100 x 1250 x 2500 mm
