Stock-No. 1106-BO167

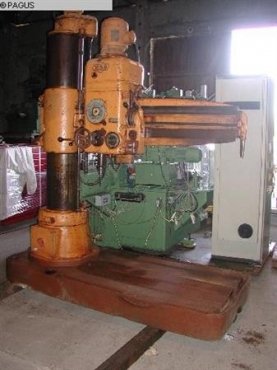

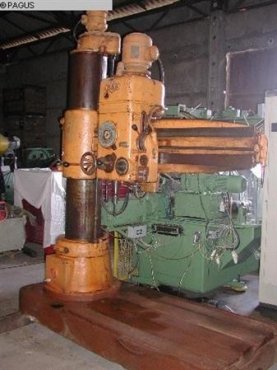

Type of machine Radial Drilling Machine
Make MAS
Type RV 40
Year of manufacture 1965
Type of control konventionell
Storage location Pagus Zschepplin Germany
Country of origin Tschechische Rep.
Specifications:
Technical details
bore capacity in steel (diameter) 40 mm
arm length 1200 mm
workpiece height max. 1430 mm
table surface area 1920 x 1010 mm
bore spindle diameter /taper MK 4 mm
bore spindle turning speed range 37.5 - 1900 U/min
bore feed range 0,1 - 1 mm/U
bore spindle stroke 280 mm
total power requirement 4.2 kW
weight of the machine ca. 2,7 t
dimensions of the machine ca. 2250 x 1100 x 3000 mm
