Stock-No. 1106-BO190

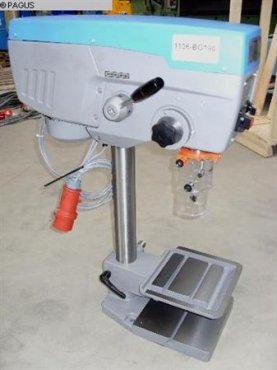

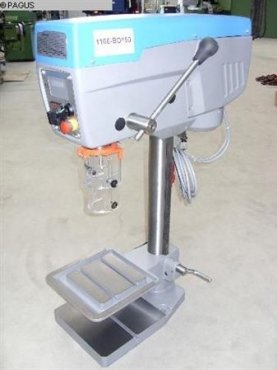

Type of machine Bench Drilling Machine
Make MAXION

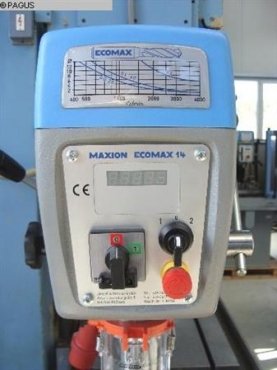

Type ECOMAX 14
Year of manufacture 2011
Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
bore capacity in steel (diameter) 15 mm
throat 180 mm
bore stroke mm
spindle MK 2
bore depth 70 mm
spindle / Tisch bis 275 mm
table surface area 250 x 220 mm
column diameter 65 mm
spindle turning speed - stepless 420 - 2100 min -1
Height 850 mm
spindle Grundplatte 415 mm
total power requirement 1,0 kW
weight of the machine ca. 53 kg
dimensions of the machine ca. 900 hoch mm
