For Sale Listings
ROSA, Delta M 38, AUTO, DRILLING & TAPPING MACHINES
  • Condition:Used
  • Category:DRILLING & TAPPING MACHINES
  • Type:AUTO
  • Manufacturer:ROSA
  • Model:Delta M 38
  • YOM:1978
  • Location:Italy, Urgnano (Bergamo)
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS21465
Description:
Manufacturer: ROSA S.p.A.
Year of construction: 1978
Machine condition: In very good condition
Machine number: 78/D/4033
Location: Italy
Specifications:

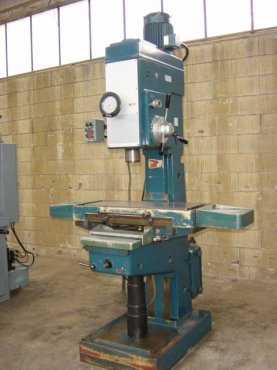

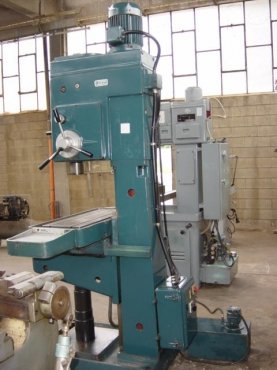

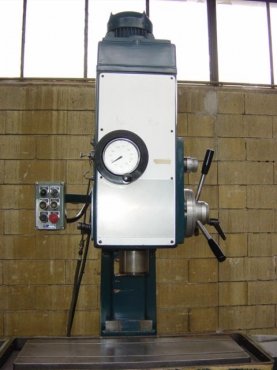

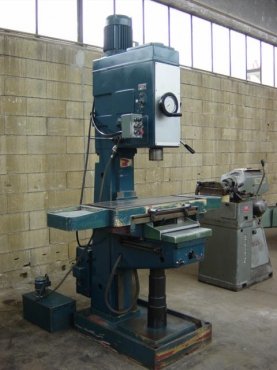

Brand: ROSA S.p.A. - PILLAR DRILLING MACHINE ROSA mod. DELTA M to pillar.
Brand: ROSA S.p.A.
Spindle CM n.4.
Drilling capacity steel 50 kg/mmq. 38 mm.
Drilling capacity in steel 70-80 kg/mmq. 25 mm.
Drilling capacity in cast iron 200 HB 42 mm.
Moving floor table on orthogonal rollers, dimensions 500x260 mm.
Variable speed 120/2000 rpm.
Automatic advancements n.4: 0.06-0.12, 0.18-0.24 rpm.
Thrust power 600 kg.
Depth of controlled holes 150 mm.
Maximum depth of drilling 200 mm.
Spindle motor 2 HP - 400 V-50 Hz/3 phases, 4/8 poles, 1440/700 rpm.
Distance spindle axis to table runners 312 mm.
Table displacement 500 mm.
Minimum distance table-spindle 285 mm.
Maximum distance table-spindle 785 mm.
Tank with electric pump for coolant.
Dimensions: base 900x600 - height 2,400 mm.
Weight: 920 kg.
Machine in very good condition, possibility of view and test.
Availability of multiple heads in two time drilling.
Dimensions:
base 900x600 - height 2,400 mm
Weight:
920 kg
