For Sale Listings

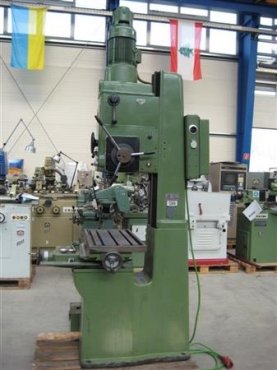

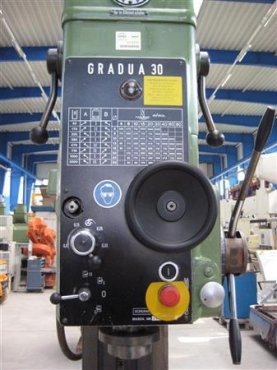

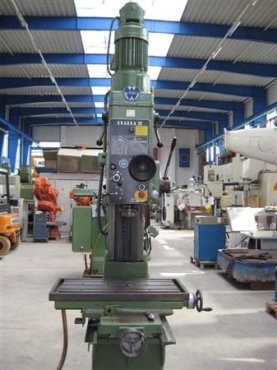

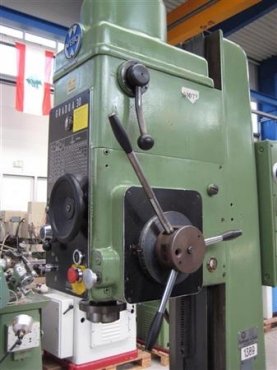

WEBO, GRADUA 30, AUTO, DRILLING & TAPPING MACHINES
  • Condition:Used
  • Category:DRILLING & TAPPING MACHINES
  • Type:AUTO
  • Manufacturer:WEBO
  • Model:GRADUA 30
  • YOM:1975
  • Location:Germany
  • Price:On request
  • Stock No:BO248
  • Control:Manual
  • ID:AS21635
Description:
Stock-No. 1106-BO248
Type of machine Drilling and Milling M/C
Make WEBO
Type GRADUA 30
Year of manufacture ca. 1975
Type of control konventionell
Storage location ex Store Jena
Country of origin Germany
Specifications:
Technical details
bore capacity in steel (diameter) 5 - 30 mm
x-travel 450 mm
y-travel 380 mm
total power requirement 1,4 / 2,2 kW
weight of the machine ca. 1.100 kg
dimensions of the machine ca. 1.000 x 1.400 x 2.900 m
gear box 85 - 2.000 U/min
spindle diameter 72 mm
bore depth 700 mm
throat 300 mm
spindle taper MT 3
T-slots 3 x 16/25 mm

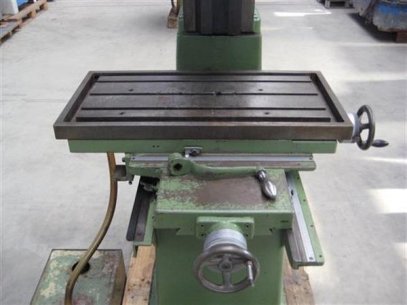

table-size 700 x 300 mm
spindle turning speed range 85/170/250/355/475/710/1000/2000 U/min
motor speeds: 705/1425
