Stock-No. 1106-BO206

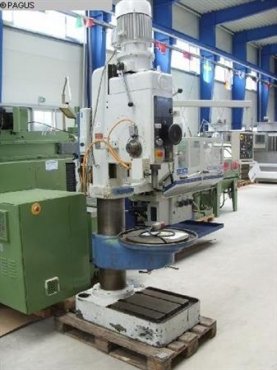

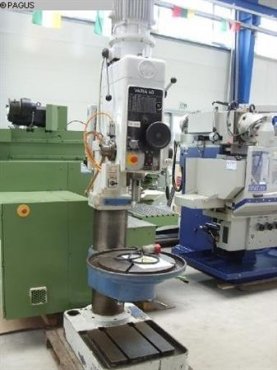

Type of machine Pillar Drilling Machine
Make WEBO
Type Varia 40
Year of manufacture
Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
bore capacity in steel (diameter) 60 mm
throat 380 mm
bore stroke mm
table surface area Ø 500 mm

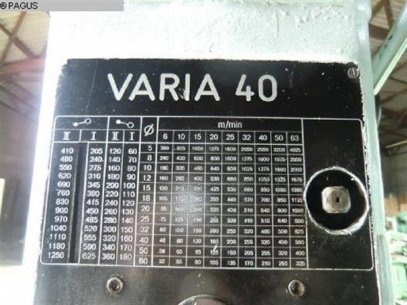

turning speed range 60 - 1250 U/min
turning speed range: 52 Stufen
feed range 0,12 - 0,4 (4 Stufen) mm/min
column diameter 250 mm
distance spindle /table 0 - 825 mm
table vertical adjustable 490 mm
spindle taper MT 4 MK
total power requirement 2,4 kW
weight of the machine ca. 1,1 t
dimensions of the machine ca. 600 x 900 x 2600 mm
