Stock-No. 1106-BO195

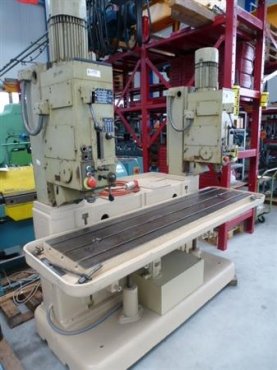

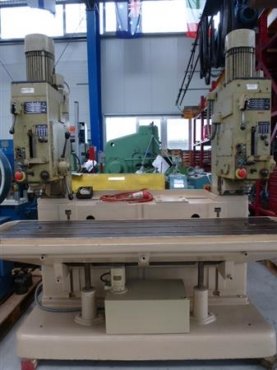

Type of machine Gang Drilling Machine
Make WMW- FRITZ HECKERT
Type BS 32
Year of manufacture 1985
Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
number of spindles 2
bore capacity in steel (diameter) 32 mm
bore stroke mm
spindle taper MT 3
table-size 1900 x 450 mm
bore depth 150 mm
T-slots 3
groove width 20/32 mm
throat 270 mm

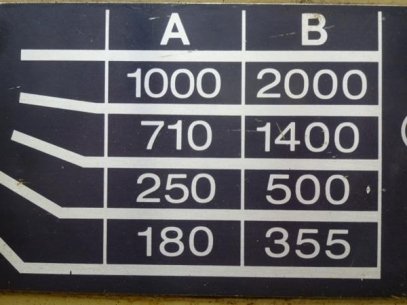

spindle turning speed range 180 - 2000 U/min
feed 0,08 - 0,32 U/min
stations 2
total power requirement 2,2 kW
weight of the machine ca. 2250 kg
dimensions of the machine ca. 2150 x 1800 x 2200 mm
