Stock-No. 1106-BO216

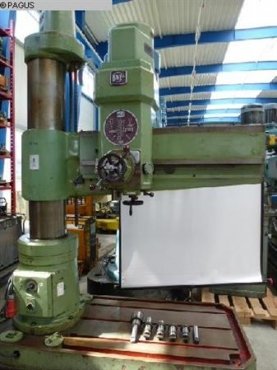

Type of machine Radial Drilling Machine
Make WMW
Type BR 40 -1250
Year of manufacture 1959
Type of control konventionell
Storage location ex Store Dubai
Country of origin Germany
Specifications:
Technical details
max. boring diameter 40 mm
Distance between spindle axis and column 350 - 1260
Dist. spindle nose & working surface base 350 - 1260
Spindle travel 315
spindle taper 4 MK
Table 740 x 1250 mm
total power requirement 4,5 kW
weight of the machine ca. 3 t
dimensions of the machine ca. 2300x 1000 x 2900 mm
bore depth 360 mm
throat 1250 mm
T-slots 3
groove width 25/ 42 mm
spindle turning speed range 22,4-2800 U/min
coolant
