CNC High Speed Production Center with Chip Conveyor

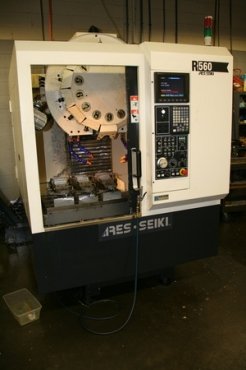

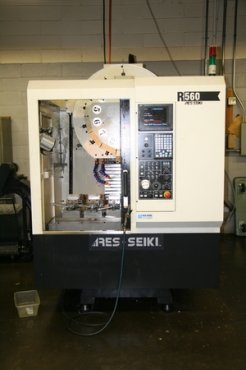

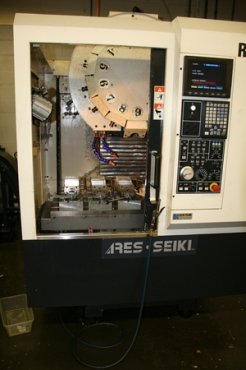

Used 2008 "Ares Seiki" Model R-560-14 CNC High Speed Production Center

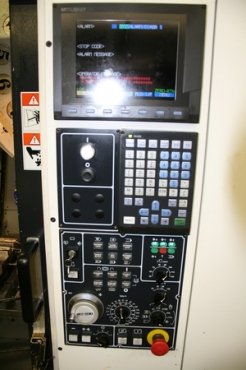

With “Mitsubishi” Model M64ASM Control
________________________________________
MACHINE SPECIFICATIONS
•Table Size: 25.6" x 16.1"
•Travel: (X) 22”, (Y) 15.7", (Z) 11.8"
•Spindle Motor: 7.5/5 HP
•Spindle Speed: 60 - 12,000 RPM (Belt Drive)
•Table top to spindle end: 7.0” – 18.9”
•Spindle Taper: BT-30 (Big Plus Dual Contact)

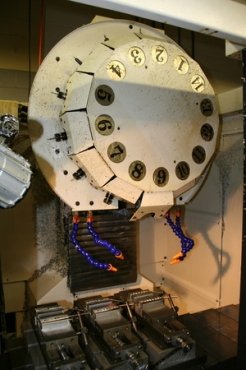

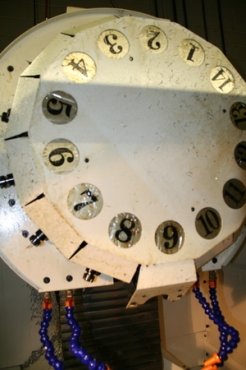

•Tool Capacity: 14 ATC High Speed
•Tool-to-Tool 1.6 Sec.
•Rapid Traverse Rate: (X, Y) 1890 IPM, (Z) 2340 IPM
•Feed Rate: 393 IPM
•Rigid Tapping: 6000 RPM
•Spindle Oil Cooling System
•Auto Lubrication System
•Coolant System and Tank
•Spindle Air Blow System
•Chip Flush System
•Program Storage Length: 600 Meters
•Work Coordinate System: 54 Sets
•Conversational Programming
•Heat Exchanger
•Leveling Bolts and Pads
•Floor Space: 60” x 104” x 87”
•Machine Weight: 5,588 Lbs.

Options Included on Machine:

•Chip Conveyor
________________________________________
TERMS:

F.O.B.: Ronkonkoma, NY
PAYMENT: In full prior to delivery
DELIVERY: Stock, Subject to prior sale

Specifications are subject to verification, Machine Sold As is, Where Is

60" x 104" x 87"

5,588 lbs.
