EQUIPPED WITH:

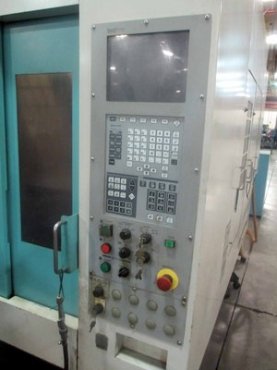

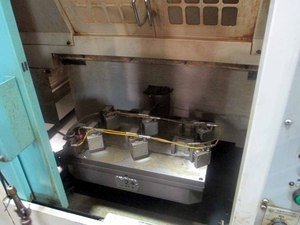

Brother CNC-A00 Control (Conversational or G-code). Quick Table (Two Surface Pallet Changer). All Available Manuals. 14 Position Turret Style ATC.
SPECIFICATIONS:
Table Size 19.7" x 11.8"
X-Axis Travel 16.5"
Y-Axis Travel 12.6"
Z-Axis Travel 10.6"
Number of Tool Stations 14
Maximum Spindle Speed 10,000 RPM
Spindle Taper BT-30
Tool Change Time (Chip to Chip) 1.8 Seconds
Rapid Traverse Rate 1181/1181/1965 IPM RAPIDS
Machine Weight 6393 lbs
Table top to Spindle Nose 7.1" ~ 17.1"
