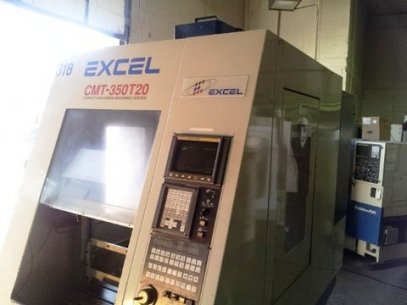

Excell CMT-350T20 1998
WORKING AREA ON TABLE: 19.68" X 10.24"
TRAVEL
X-AXIS: 13.78"
Y-AXIS: 9.84"
Z-AXIS: 9.84"
DISTANCE – TABLE SURFACE & SPINDLE: MAXIMUM 16.14"
MINIMUM 6.3"
DISTANCE – COLUMN & SPINDLE CENTER: 14.96"
SPINDLE TAPER: NT #30
SPINDLE SPEED COMMAND: DIRECTLY PROGRAMMABLE
WITH 5-DIGIT S CODE
SPINDLE SPEED RANGE (MAX.): 15,000 RPM
SPINDLE MOTOR: 5 HP (30 MIN.)
3 HP (CONT.)
COOLANT PUMP MOTOR: 180W
LUBRICATION PUMP MOTOR: 15 MIN. AT 50 Hz
AUTOMATIC TOOL CHANGER
TOOL SELECTION SYSTEM: MEMORY RANDOM
NUMBER OF TOOLS: 21 PCS. MAXIMUM
(INCL. SPINDLE TOOL)
MAXIMUM TOOL DIAMETER: 3.1"
WHEN NEXT POTS ARE EMPTY: 3.94"
MAXIMUM TOOL LENGTH: 7.8"
MAXIMUM TOOL WEIGHT: 4.4 LBS
AIR SUPPLY: 71.1 LB/IN²
AIR COMPRESSOR'S CAPACITY: MORE THAN 2 HP
RAPID TRAVERSE
X & Y AXIS: 1,574.8 IPM
Z-AXIS: 1,181.1 IPM
CUTTING FEED RATE: 0.04 – 393.7 IPM
REQUIRED FLOOR SPACE: 48.82" L X 112.21" W
OVERALL MACHINE HEIGHT: 88.8"
NET WEIGHT: 6,614 LBS
