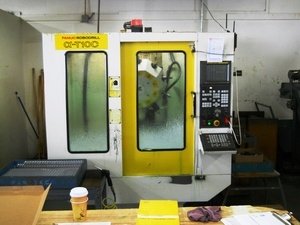

Manufacturer: Fanuc
Model: QX T 10C
S/N: E95Z02457
Year: 1995
Condition: Good
Specifications:
Approximate Age/Installed: MFG 12-1995 installed 1996
Max. Table Load: 330 lbs.
Spindle Nose to Table Top: 5.5" - 16.1"
X-Axis Travel: 20.0"
Y-Axis Travel: 14.96"
Z-Axis Travel: 11.81"
Rapid Traverse: X, Y, Z 1417 IPM / 1969IMP
Spindle Taper: BT 35
Spindle Speed: 8,000 RPM
Spindle During Tapping: 6,000 RPM (Max.)
Spindle Motor: 7.5 HP
Tool Changer Capacity: 10 + 1 Tools
Tool Change Time: 1.1Seconds
Chip to Chip Time: 1.8 Seconds
Approximate Dimensions: 77" x 105.2" x 95.7"
Machine Weight: 4,078 lbs + indexer
Equipped With:

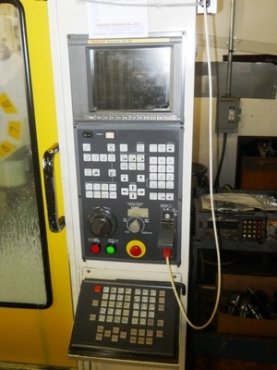

FANUC 16 M CNC CONTROL
HAAS 5C Rotary Indexer/W CONTROLER
Manual Pulse Generator
Front Door Interlock
Spindle Air Blast

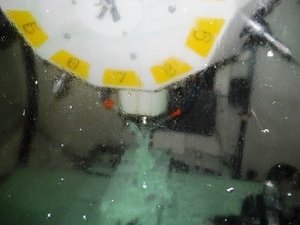

(10) Position Turret
RIGID TAP
ALL AVAILABLE MANUALS
COOLANT TANK AND PUMP
