IXION, PC 1-6000 BT 30 ST/GSE, N/C & CNC, DRILLING & TAPPING MACHINES
  • Condition:Used
  • Category:DRILLING & TAPPING MACHINES
  • Type:N/C & CNC
  • Manufacturer:IXION
  • Model:PC 1-6000 BT 30 ST/GSE
  • YOM:1999
  • Location:Germany, Niedersachsen
  • Price:On request
  • Stock No:-
  • Control:NC
  • ID:AS1357
Description:

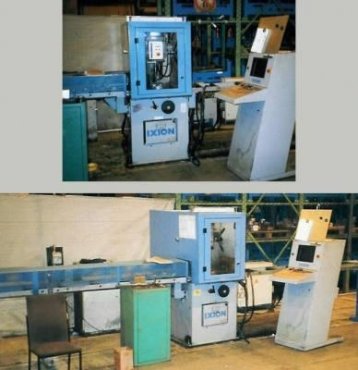

CNC linear drilling and tapping machine IXION PC 1-6000 BT 30 ST/GSE

Good condition
Specifications:
CNC linear drilling and tapping machine Fabr IXION type PC 1-6000 BT Year 12/1999 long-part machining Machine No. 240 028 Specifications: Working range 30 mm Standard capacity 35 mm Tapping capacity up to M 30 spindle taper MT3 spindle speeds infinitely variable 160-2800 rpm . Throat depth 280 mm 150 mm distance spindle to table 220-600 mm rapid traverse 6 m / min, column diameter 120 mm Einfahrgenauigkeit + - 0.1 mm table surface 390 x 420 mm workpiece weight 60 kg power output 1.3 / 2.3 kW - Height adjustment of forward - twist - minimum quantity lubrication system - thread cutting device - digital depth and speed indicator - cross travel of drilling unit 250 mm programmable - single-acting pneumatic vise - pinion drive unit for semi-automatic drilling, infinitely variable up to 145 mm with a chip fracture and Sprungvorschüben
