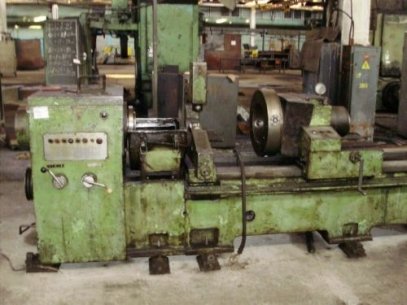

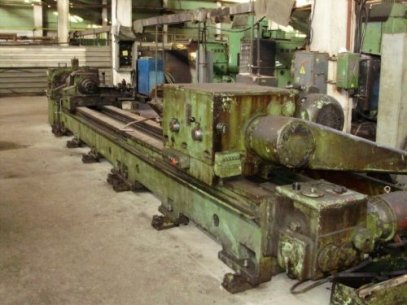

Deep hole drilling machine mod. RT60104 made in 1971, Russia.
Specifications:
Max lenght of the work piece: 6000 mm
Height from the guides: 400 mm
Diameter of the work piece:
-Max: 320 mm
-Min: 50 mm
Max work-piece weight
-With one lunette: 3000 kg
-With two lunettes: 4000 kg
-With three lunettes: 5000 kg
Working feed: 5-3000 mm/min
Tool rotation speeds: 40-500 rpm
Main motor power: 28 kW
