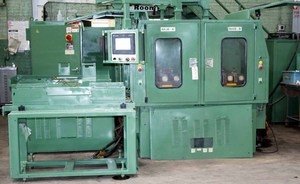

1/2" x 24" 6-Spindle DeHoff/Kays Model 1036 Gun Drill
Specifications:
1/2" x 24" 6-Spindle DeHoff/Kays Model 1036 Gun Drill
Serial No. DH1898 Age: 1998
Spindle Motor (6) 3 HP
Drill Capacity .500"
Number of Drill Heads 6
Number of Spindles 6
Drill Head Stroke 24"
Feed Rate .1 - 30 IPM
Rapid Retraction of Drill Head 400 IPM
Spindle Speed 2000 - 6500 RPM
Tank Capacity 300 Gallon
High Pressure Pump Output (2) 34 GPM
Maximum Pressure 1500 PI
High Pressure Pump Motor 30 HP
Transfer Pump Motor 3 HP 100 GPM
Equipped With:
(2) Independent Ball Screw Driven Slides. Each With (3) Drill Heads. Each With Chip Box. Each With Haas End Support. Tailstock. Allen Bradley PLC503 With Panelview 900 Operator Interface. Walking Beam Type Arts Loading And Unloading System. 300 Gallon DeHoff High Pressure Coolant System With Filtration And Chiller. Magnetic Chip Conveyor. Full Work Enclosure With Lights.
