Deep hole borer 1000x8000 mm in excellent working condition.
Specifications:
Original : Kramatorsk , Ukraine
Work piece length range on one-sided machining, mm 1.000 ... 8.000
Height of an axis of the centers over a bed, mm 670
The greatest diameter of a processed detail over a bed, mm 1300
Range of diameters of products clamped
- in cams a faceplate, mm 200-1100

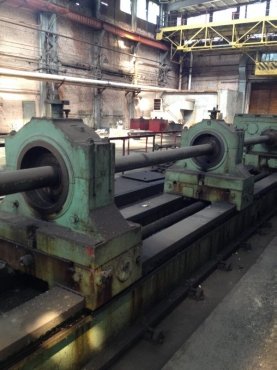

- in open study rests , mm 400-900
- in closed study rests, mm 200-630
- in round study rests, mm 250-550
Range of lengths of the preparations established on the machine tool
At unilateral through processing, mm 1000-8000
The greatest weight of the workpieces
a)in two open study rests, kg 25000
b) in two closed study rests, kg 8000

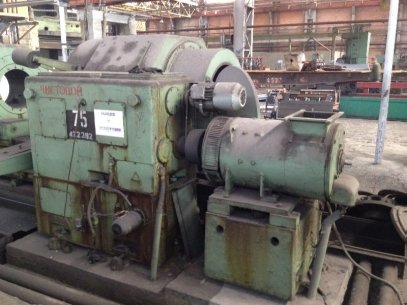

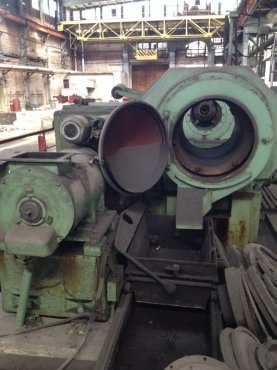

Headstock :
Stepless spindle speed, rpm: 2 –200
Spindle hole diameter , mm 700
Number of ranges 4
Chuck head power, kW: 85
Tool head
Stepless spindle speed, rpm: 50 – 500
Number of ranges 2
Motor power, kW: 75
Rod holder torque, kgm: 500
Rod rotation motor power, kW 11
Counter rotation
Machine dimensions:
- Length of 27 730 mm
- Width of 5 700 mm
- Height of 2 400 mm
Machine weight: 92 600 kg
