Centre height over bed 670mm
Max work-piece diameter over bed 1300mm
Diameters range of work-piece clamped in chuck 200 – 1100mm
Diameters range of work-piece placed in open steady rest 400 – 900mm
Diameters range of work-piece placed in closed steady rest 400 – 900mm
Diameters range of work-piece placed in lunette 400 – 900mm
Length of work-piece 8000 mm
Max weight of work piece with open steady rest 25Mg
Fast headstock spindle speeds 2-200 rpm
Fast headstock arbour spindle speeds 125 - 500 rpm
Trough hole 700mm
Trough hole in arbour headstock 182mm
Feeds 0.5 – 1500mm/min
Max strength of the feed – 8000kG
Length of the machine tool for machining work-pieces 10m - 32000mm
Width of the machine tool for machining work-pieces 10m - 5250mm
Height of the machine - 2500mm
Max weight of machine with electric cabinets – 90 000kg

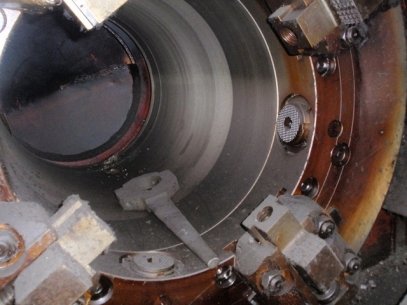

Deep hole boring dia from 60 to 150mm
