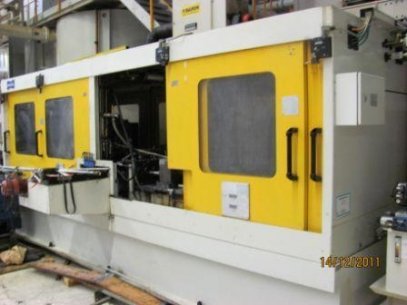

Deep drilling rig manufacturer: Nail Type: 2 B 4 H 320-SE Year: 2000 Material: steel 42 CrMo 4 Machining diameter: 4 mm depth: Unit A: 132 mm / Unit B: 143 mm drilling: Drilling capacity: 4 x 4 mm depth: 270 mm (Unit A: 132 mm / Unit B: 143 mm) mold: single lip Number of spindles: 4 drives: 4 Drive Motors Spindle Drive: Poly V-belt spindle drive Power: 4 2.2 = 8.8 kW Spindle speed: 6360 U / Bohrbuchsenträger min: 4-spoidlig (rigid) linear guide system: linear guide Gr. 35 Feed speed: 0-1000 mm / min. / Fast: 10,000 mm / min. Senkeinheit: Senkdurchmesser: 46.1 mm Depth of cut: 100 mm (required 10 mm) Tool System: Lower, Level Number of spindles: 4 Tool Connection: HSK and hydraulic chuck drive motor: 1 Spindle Drive: 4 spindle drill head spindle power: 4 kW Spindle speed: max. 5700 rev / min linear guide system: linear guide Gr. 35 feed drive: Continuously adjustable via ball screw and servo motor feed speed: 0-1000 mm / min. / Fast: 10,000 mm / min. Tool Monitoring System Performance Measurement Performance Measurement nail, border surveillance and alarm display blunt tool breakage digital display of the percentage share of torque transfer drive: Hydraulically actuated with prismatic Schritthubtransport Horizon thalweg conditions: 600 mm Vertical travel: 80 mm hydraulic industr.equip
