For Sale Listings
Samag, TFZ2 - 1000, DEEP HOLE, DRILLS
  • Condition:Used
  • Category:DRILLS
  • Type:DEEP HOLE
  • Manufacturer:Samag
  • Model:TFZ2 - 1000
  • YOM:2013
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:7570
  • Control:CNC
  • ID:AS29466
Description:

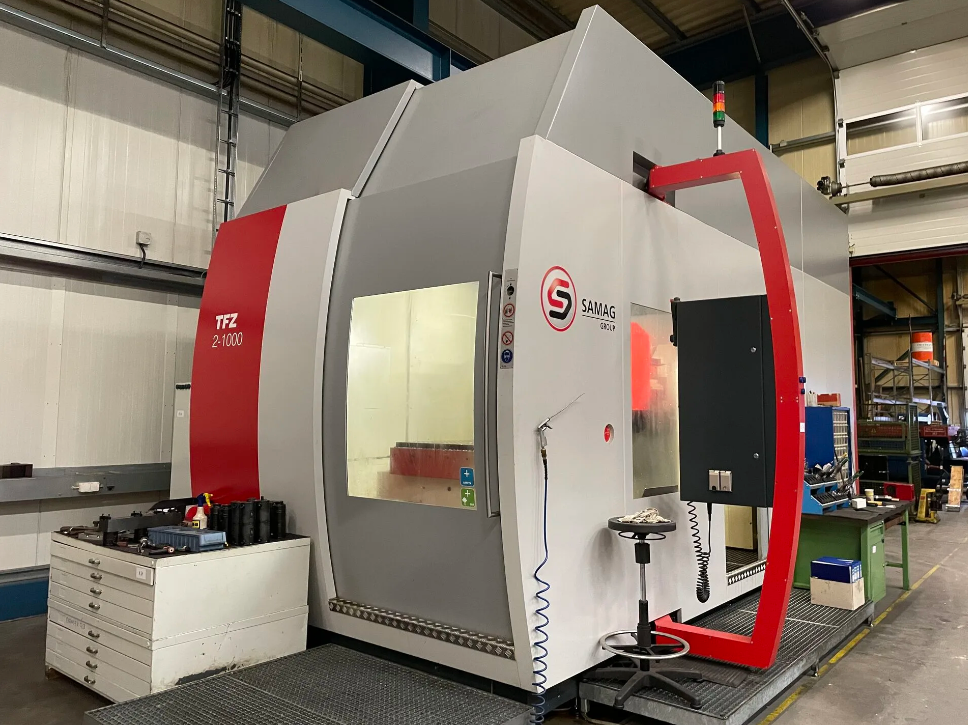

Deep hole drilling machine
Samag - TFZ2 - 1000 Designed for mold making also for larger counterpart
its machine cubical workpieces both effiently and precisely and uses
optimized drilling and milling small, medium and large scale are covered.


Working area and Drilling capacity

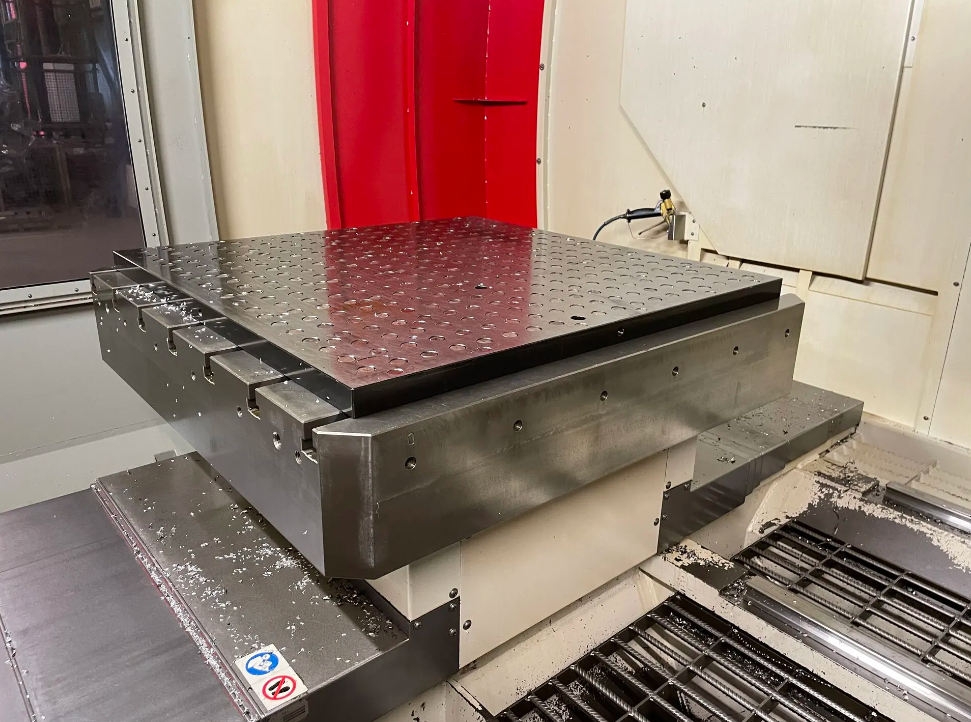

Table dimensions: 1,100 x 1,100 mm
Max. table load: 7,000 kg
Drilling depth: 1,100 mm
Drill diameter: 4 - 30 mm
Thread cutting up to M24

Axis travel

X - axis (horizontal): 1,200 mm
Y - axis (vertical): 1,1000 mm
Z - axis (horizontal): 1,100 mm
W - axis (horizontal - swivelling): 1,600 mm
A - Axis (swivel axis): +15°/- 30°
B - axis (CNC rotary table): 360°

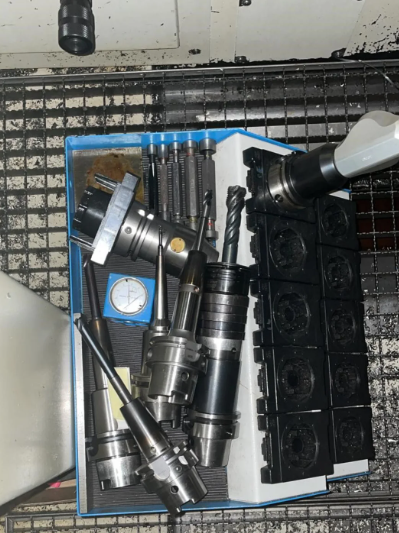

Spindle and Tool changer

Spindle holder: HSK-A 63
Tool change positions: 32

General data

KNOLL chip conveyor
Read off programme run time: 8285
Measured switch-on hours: 23873
Serial number: 68033

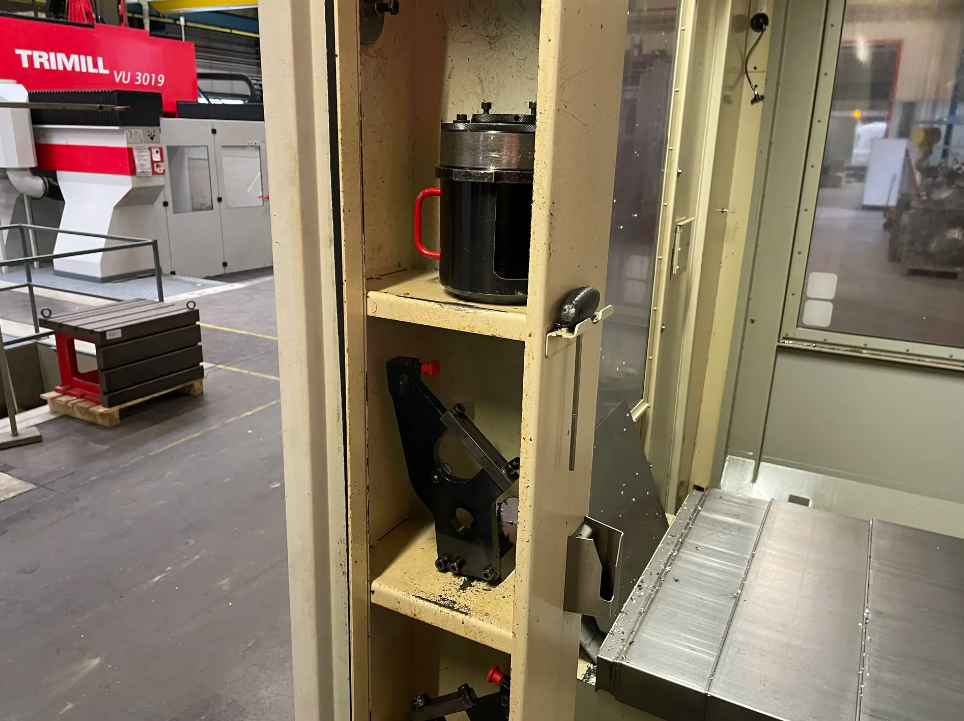

Telescopic drawer cabinet
2 sheet steel cabinets


Max. drill Ø steel: 36mm
X - Travel: 1200mm
Y - Travel: 1050mm
Z - Travel: 1100mm
W - Travel: 1600mm
Table load: 7000
Table size L x W / or ø:1100 x 1100mm
Spindle taper: HSK 63Mk

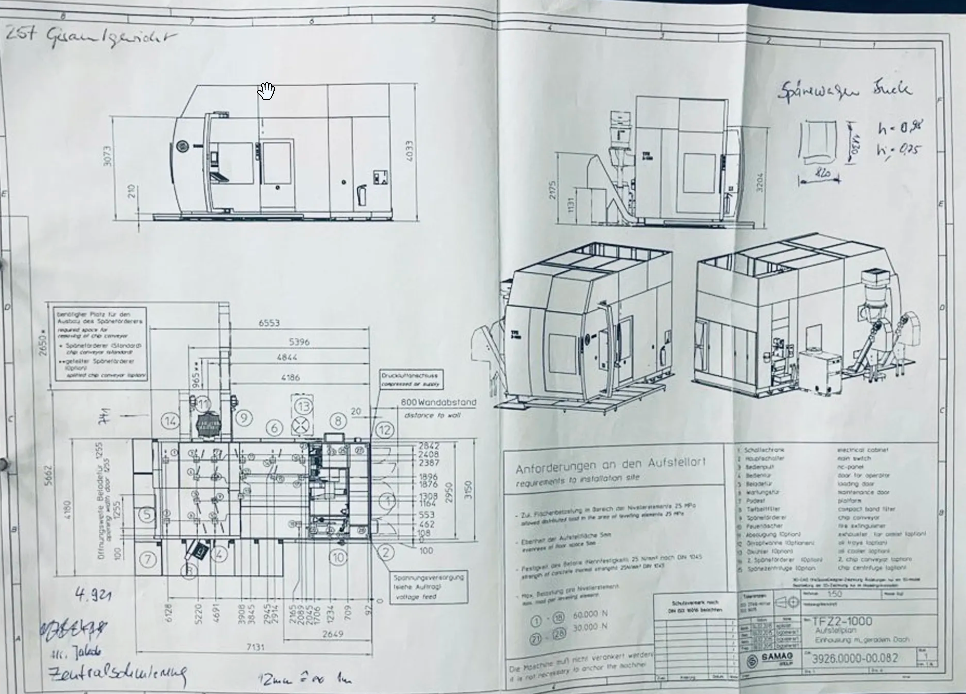

Length: 6550mm
Width: 5660mm
Height: 4040mm
Weight: 25000kg
Specifications:
Deep hole drilling machine
Samag - TFZ2 - 1000 Designed for mold making also for larger counterpart
its machine cubical workpieces both effiently and precisely and uses
optimized drilling and milling small, medium and large scale are covered.


Working area and Drilling capacity

Table dimensions: 1,100 x 1,100 mm
Max. table load: 7,000 kg
Drilling depth: 1,100 mm
Drill diameter: 4 - 30 mm
Thread cutting up to M24

Axis travel

X - axis (horizontal): 1,200 mm
Y - axis (vertical): 1,1000 mm
Z - axis (horizontal): 1,100 mm
W - axis (horizontal - swivelling): 1,600 mm
A - Axis (swivel axis): +15°/- 30°
B - axis (CNC rotary table): 360°

Spindle and Tool changer

Spindle holder: HSK-A 63
Tool change positions: 32

General data

KNOLL chip conveyor
Read off programme run time: 8285
Measured switch-on hours: 23873
Serial number: 68033
Telescopic drawer cabinet
2 sheet steel cabinets


Max. drill Ø steel: 36mm
X - Travel: 1200mm
Y - Travel: 1050mm
Z - Travel: 1100mm
W - Travel: 1600mm
Table load: 7000
Table size L x W / or ø:1100 x 1100mm
Spindle taper: HSK 63Mk
Length: 6550mm
Width: 5660mm
Height: 4040mm
Weight: 25000kg
Dealer name:
Mach4Metal Netherlands, Babberich
