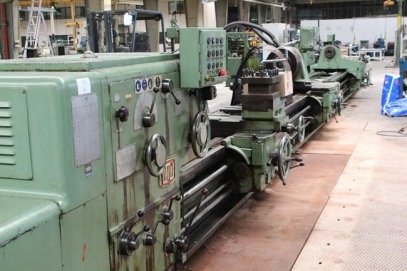

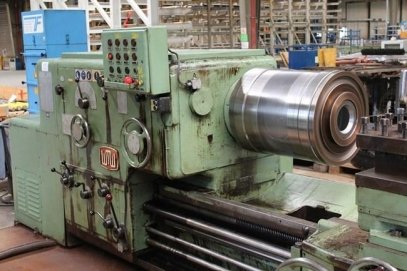

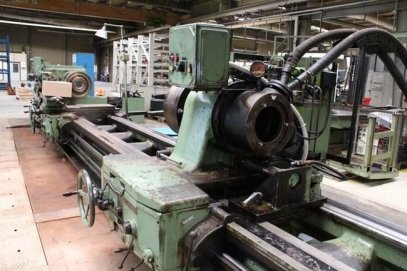

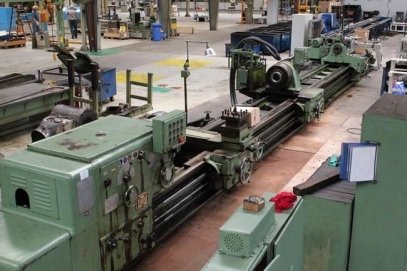

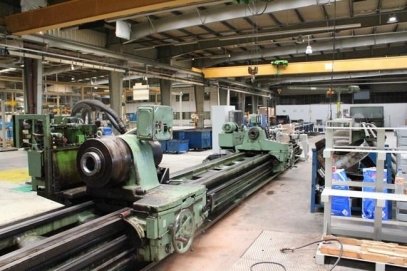

WMW lathe / lathe heavy / deep hole drilling machine built in 1964, deep-hole length of approximately 6000mm x 400mm max. Swing / rotation length 1.000 x 12.000 mm, max. 560 rpm, swarf centrifuge, oil supply electrostatic filter Füchtenkötter BRANDIS GMBH, (deep drilling) drilling depth 600 5000mm drilling diameter 80 500mm Lünetteneinsatz to 350mm from 350mm tools required bore length 3000 6500mm drive performance machine 30kW gear 9 kW oil pumps 2 x 10 kW, 2 x 5kW rotation length Max with tailstock 9500mm driving power of the drill motor 10 kW Speed 970 r / min increment of 1.25 rotary drive speed of the drive 60, 81, 95, 119, 152, 190 r / min quantity of oil for cooling and lubrication of 1,200 l / min There is extensive documentation (technical drawings) of the machine Large items such as accessories for machine drilling bits, drill rods, rolling equipment, etc. more pictures see the PDF document data are without guarantee since taken over from the technical documentaion 1:1.
