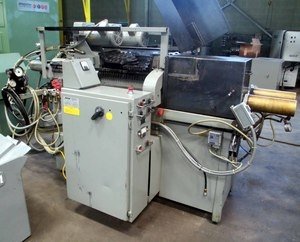

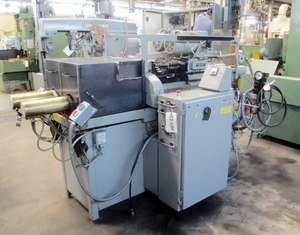

¾" x 30" 2-Spindle Eldorado/Mega Model M-75-1041 Precision Deep Hole Gun Drill

¾" x 30" 2-Spindle Eldorado/Mega Model M-75-1041 Precision Deep Hole Gun Drill

S/N: 1252, 1094 New: 1986

EQUIPPED WITH:

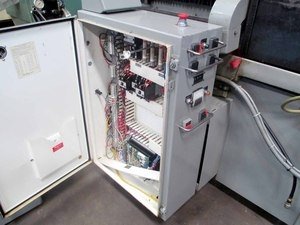

Motor Driven With 3 HP, 3 Phase, 60 Cycle, 230 Volt Spindle Drives. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP DC Servo Feed Motors.

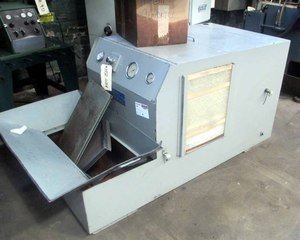

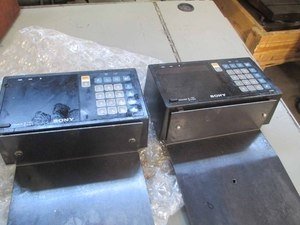

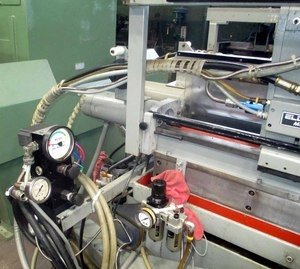

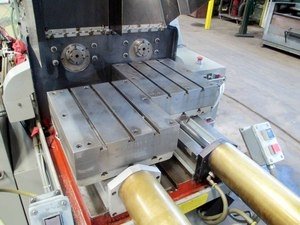

Ball Screw Driven Drill Feed. Eldorado Model F18 "Mega Flo" High Pressure Coolant System With Filtration And Heat Exchanger. Ball Screw Driven Headstock Feed System. Potentiometer Feed Rate. Feed Thrust Load Meter. Mega Flo Minder. Chip Box. Automatic Slideway Lubrication. Spindle Load Meter. Sony LH5 Single Axis DRO for both Drill Heads. Pneumatically Controlled 12" x 14" T-Slotted Two Position Sub Tables.

SPECIFICATIONS:
Drilling Diameter: Maximum .75"
Drilling Diameter: Minimum .0550"
Maximum Drilling Depth 30"
Spindle Speeds 1,445-11,740 RPM
Feed Rate: Drilling .1-99.9 IPM
Feed Rate: Rapid 200 IPM
Work Table (2) 12" x 24"
Straightness per 12": .001"
Coolant Pressure, Maximum: 1500 PSI
Reservoir Capacity: 90 Gallon
Coolant Flo: 18 GPM
Filtration: 5 Micron
