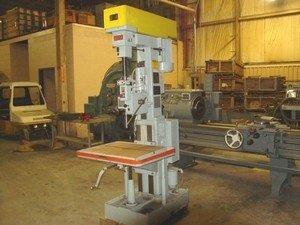

SPECIFICATIONS
Drill Capacity-1-1/2"
Speeds Back Gear-60-375rpm
Speeds Direct 250-1500rpm
Table Size-22 x 26-1/2" <
Vert.Table Travel-15"
Vert.Head Travel-16"
Speeds-(12)60-1500 RPM
Feeds- .0007-.017 IPM
Taper - #4 MORSE
Quill Stroke - 6"
Motor - 3 HP 230/460

EQUIPPED WITH
Power Feed
Coolant Pump and Sump

1993 Mazak CNC Turning Center
Model QT-15N Universal

CATALOG SPEC'S:

Max. swing: 17.32"
Swing over bed: 10"
Max. cutting diameter: 11.81"
Max. machining length: 19.69
Max. bar work size: 2"
Spindle bore:2.44"
Spindle nose A2-6
X axis travel: 7.09"
Z axis travel: 20.08"
Spindle speeds: 45 - 4500 RPM
8 position turret
Mazatrol T32B CNC control
Tailstock
Presetter (presently not working)
Chip conveyor
Spindle liners

Located in a CT plant under power
