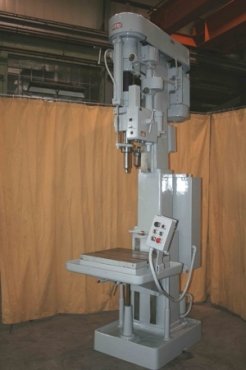

24" ALLEN MODEL VCDW HEAVY DUTY NO. 3 POSITIVE DRIVE POWER FEED DRILLING MACHINE
Specifications:
24" ALLEN MODEL VCDW HEAVY DUTY NO. 3 POSITIVE DRIVE POWER FEED DRILLING MACHINE
S/N: 35732New: 1981
EQUIPPED WITH:
Motor Driven With 7.5 HP, 3 Phase, 60 Cycle, AC Spindle Drive. Complete With Electrical Control Cabinet And Front Mounted Operators Push Button Controls.
Positive Drive Power Feed With Automatic Power Feed Engagement. Auxiliary Feed Gear Box. Back Geared Spindle Drives. Power Traverse. 20" x 24" T-Slotted Adjustable Height Work Table. Dwell Timer. 2" Bolster Plate. Coolant. 22" Riser.
SPECIFICATIONS:
Working Surface of Table 20.5" x 24"
Overhang of Spindle 12"
Sliding Head Traverse 8"
Table Movement on Column 15"
Maximum Distance Spindle to Table 44"
Spindle Traverse in Sliding Head 10"
Taper in Spindle No. 5 MT
Spindle Speed (20) 50-1800 RPM
Spindle Feeds (16) .00625-.040
Approximate Weight 3,800 lbs
