Spindle Speeds150-1200 (6 Steps)
Spindle Taper3MT
Distance from Spindle to Column12”
Table Vertical Travel10”
Table Size24 x 60
Distance from Spindle to Spindle15”
Spindle Travel8”
Downfeed Increments.007, .010, .015
Motor¾ / 1.5 HP, 440V, 3 Ph
2 Heads are Power Down Feed, 2 are Manual with Reverse
Specifications:
Proposal for Machine #8698
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

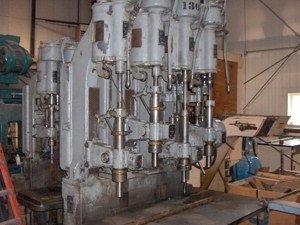

1-Used Avey 4 Head Drill Press
Model Number: #3
Serial Number: 22478
Specifications:
Spindle Speeds150-1200 (6 Steps)
Spindle Taper3MT
Distance from Spindle to Column12”
Table Vertical Travel10”
Table Size24 x 60
Distance from Spindle to Spindle15”
Spindle Travel8”
Downfeed Increments.007, .010, .015
Motor¾ / 1.5 HP, 440V, 3 Ph
Weight3,000 Lbs
Dimensions76” x 54” x 111”
Machine Equipped With:
2 Heads have Power Down Feed, 2 Heads are Manual with Reverse
