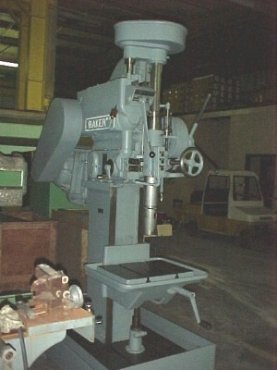

One used Baker single spindle, Heavy Duty Drill. No. 314 A. 17 x 23" table (T-slotted). Fwd/Rev. 43-232 RPM. #5 Morse taper. Quill travel-18". Table travel (vert.)-approx.-33". Motor-15 HP 220/440V. Coolant system. Easily drill 3" holes in solid steel. This drill is in very nice condition.
Specifications:
1993 Mazak CNC Turning Center
Model QT-15N Universal
CATALOG SPEC'S:
Max. swing: 17.32"
Swing over bed: 10"
Max. cutting diameter: 11.81"
Max. machining length: 19.69
Max. bar work size: 2"
Spindle bore:2.44"
Spindle nose A2-6
X axis travel: 7.09"
Z axis travel: 20.08"
Spindle speeds: 45 - 4500 RPM
8 position turret
Mazatrol T32B CNC control
Tailstock
Presetter (presently not working)
Chip conveyor
Spindle liners
