34" Swing Gear Head, #4 MT, 65" Spindle to Table Max., 25-1/2" Spindle to table min, 5.5 HP, 66-1255 RPM.

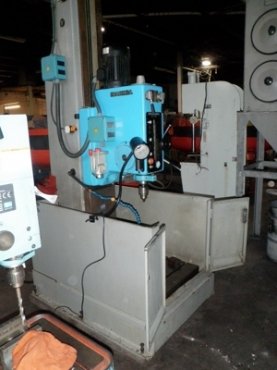

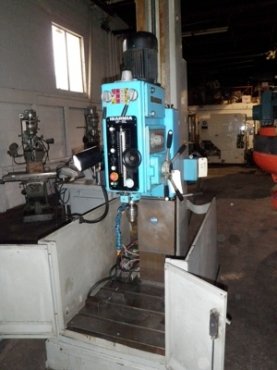

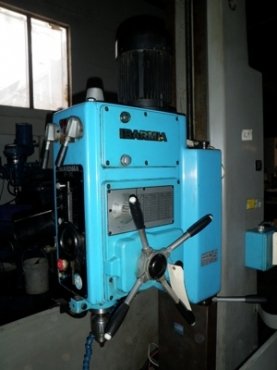

IBARMIA Precision Heavy Duty Box Column Vertical Drill Press
Model: BP-50L S/N: 150-AC Year: 2000
Condition: EXCELLENT

Specifications:
Swing 34"
Spindle Taper #4 MT
Drill Capacity in Steel 2"
Drill Capacity Cast Iron 2-3/8"
Motor 5.5 HP
Spindle Travel 9-1/16"
Table 26" x 31"
Speed Range 66 -1255 RPM
Number of automatic feeds 6
.05, .10, .15, .20, .25, .30
Max Tapping Capacity Steel M 42
Head Travel On Column 39-1/2"
Spindle to Table Max 65"
Spindle to Table Min 25-1/2"
Weight 3000 LB

Equipped With:
Extralong Prismatic Column
Electromagnetic Feed.
Power Elevation.
Internal Oil Lubrication.
Coolant Pump.
Torque Limiter to protect auto feed against possible damage..
T Slot Table Base.
Drill Ejector.
32-1/2" wide x 25" H Splash Guards with Doors.
12" round 3 Jaw Chuck mounted to base table.


FOB Truck, Our Baltimore Showroom
