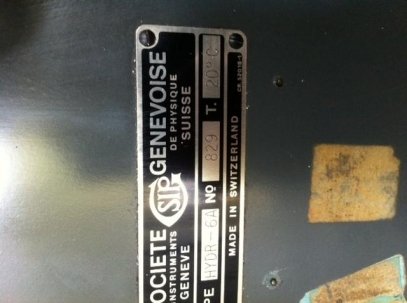

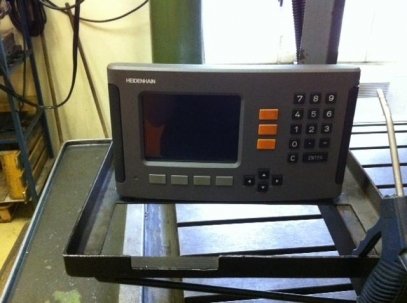

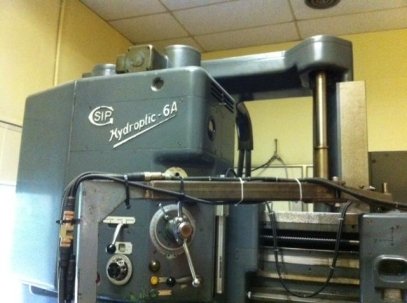

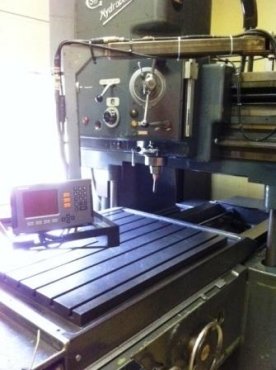

Type of machine Machining Center - Vertical Make SIP type Hydroptik manually built in 1969 Type of control conventional Storage location FRANCE Country of origin Switzerland Delivery time immediately Freight basis free stock technical details spindle diameter 135 mm x-travel 1000 mm y-travel 700 mm Distance between columns 1100 mm vertical adjustment of Qürbalkens 795 mm clamping area 1100 x 842 mm max. Load of 1,000 kg hydraulic table. Motion / Fräsvorschübe to 500 mm / min hydraulic. Movement / rapid movement min 2500 m / min. Aufspannkonus inside Morse No. 4 Aufspannkegel outside SIP 4e 18 x speed 40-2000 U / min feeds automatic 6x0 from 0.04 to 0, 35 mm / rev feed stroke of 300 mm spindle bore capacity in full D-60 mm Additional information Free-flow table surface to spindle max / min. 1000/200 mm Eilverstellung Drill spindle 1500 mm / min Automatic Fräsvorschübe 30-60 - 90 - 180 mm / min WITH DIGITAL DISPLAY HEATH HEIN
