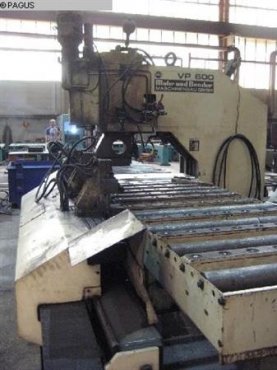

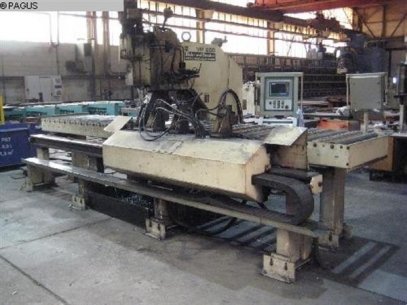

Stock-No. 1106-BO212
Type of machine Plate drilling
Make MUHR & BENDER (MUBEA)
Type Mubea-Matic PI 200x100-1D
Year of manufacture 1993
Type of control CNC
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
workpiece thickness max. 80 mm
workpiece thickness min. 5 mm
plate size without being adjusted 2000x1000 mm
size of plate min. 100x100 mm

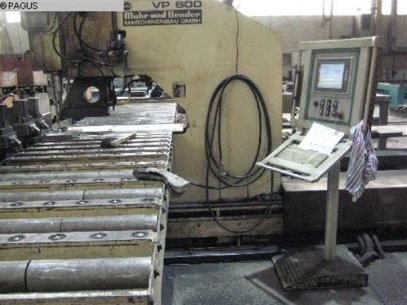

control CNC Mubea Matic100

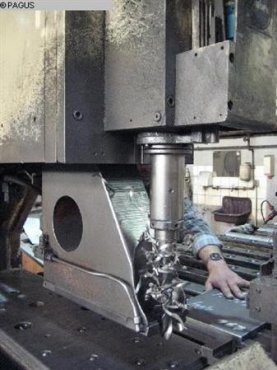

hole diameter min/max:10/40 mm
workpiece weight 750 kg
deburring device max. d=40 mm
traversing speed 80 m/min
work height max. 1050 mm
positioning accuracy +/- 0,5 mm
opening of gripping pliers min/max. Typ I: 5/45 mm
opening of gripping pliers min/max. Typ II: 45/85 mm
feed length max. 150 mm
rapid traverse: 8 m/min
spindle turning speed range 112-180-224-280-355-560 U/min
work table: L:2500;B:950 mm
arm gripping device 4 Stück
tool taper Kegel DIN 6327
longitudinal travel x=2800 mm
cross travel y=1000 mm
bore spindle stroke max. 150 mm
total power requirement 25,0 kW
weight of the machine ca. 5,5 t
space requirements approx. LxWxH 5,0x5,5x2,7 m
Additional Informations
plate size with beeing adjusted also 1000x4000 mm possible

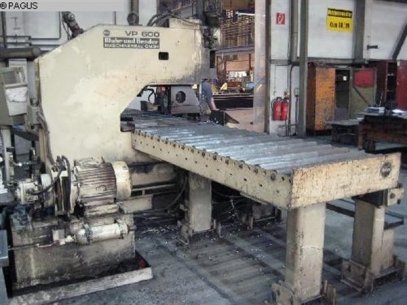

with roller conveyor 2x1000mm
material supporting table complete with supporting elements, guidance rail for guidance and transportation of the positioning wagons , cooling of the drill via air pressure
control for 2 axis positioning x-axis 80m/min and y-axis 30m/min,
memory capacity approx. 10.000 programs
position wagon/carriage, 2 material support table, material standard gauge railway,
electric cabinet, control panel, hydr. aggregate
accessories:
2 pcs. drill sleeve, roller conveyor 1800x1000mm
