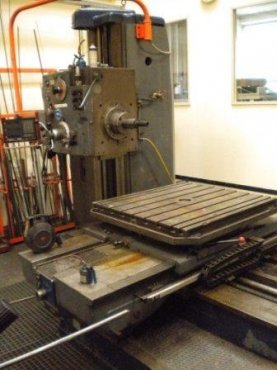

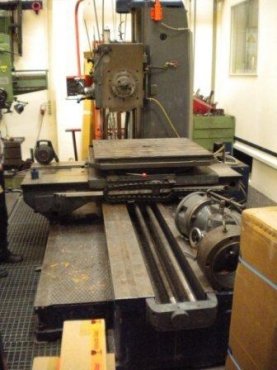

Type WH 80
Dm 80mm spindle
Tool fixture SK40
Vertical adjustment of table 800mm
Speed stages 21
Speed range 14-1400 U / min
Table size 1000 x 1090mm
Swivel range 360 °
Transverse motion 1250mm
Longitudinal movement 1250mm
Feeding stages 26
Feed range 0.025 to 8mm
rapid 1600mm/min
Power main motor of 7.5 kW
max. Table weight 2800kg
Weight about 10800kg
dimensions
Length x Width x Height 4.6 x 2.36 m x 2.5 m
The machine is retrofitted with a digital display
Accessories:
UFP Universal Head 40/1
tool
