Machine equipped with: power elevation to arm, manual column clamping, 30" x 25" box table with T slots and large vise, 22-1200 spindle speeds (48 steps), 6-41 spindle feeds, 10" spindle quill travel, 4 mt spindle taper, approx. machine weight- 7,000 lbs.
Specifications:
Proposal for Machine #9099
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

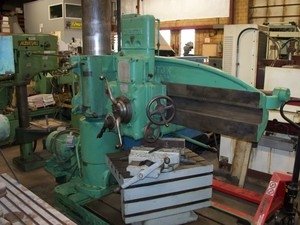

1-Used Carlton 4’ x11” radial drill
Model Number:
Serial Number: 27301
Mfg: 1951
Specifications:
Spindle speeds 22-1200 rpm (48 steps)
Spindle feeds 6-41 (6 steps)
Spindle quill travel 10”
Spindle taper 4 mt
Main motor 7.5 hp 220/440V
Approx. weight 7,000 lbs
Machine Equipped With:
Power elevation to arm, manual column clamping, 30” x 24” box table with T slots, large vise
